Ingiant large current slip ring ID 75mm 4 rings 100A for Port machinery
|
DHK075-4-100A |
|||
|
|
|||
|
Number of circuits |
27 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

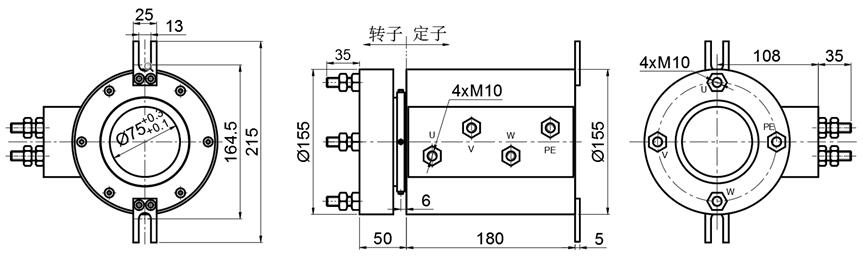

Standard product outline drawing:
Large current slip ring is designed for big power transmitting, max current can support 7500A, with low contact resistance when 360°rotating.
The housing of large current slip ring is designed with aluminum alloy or antiflaming engineering plastic, fast heat emission, and have a large number of cooling holes, Each slip ring would be tested for large current shock and temperature rise before delivery.
Features
- Integrated structure design for easy installation
- 50A, 100A, 500A, 1000A or higher current are available
- Various sizes with internal or external thread installation
- IP 51 (IP54-IP68 can be customized)
- Signals combination with high current is available
Our Advantage
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
