Ingiant slip ring for camera technology

Short Description:

Application filed: intelligent robots, packaging equipment, stackers, magnetic llutches, engineering machinery, Industrial automation equipment,exhibit,display equipment, hotel, Medical equipment,guesthouse revolving door control system, Turntable equipment , Construction machinery process control equipment, Amusement equipment ,defense, security, etc.


Product Detail

Product Tags

Specification

DHS075-38

The main parameters

Number of circuits

38

Working temperature

“-40℃~+65℃"

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

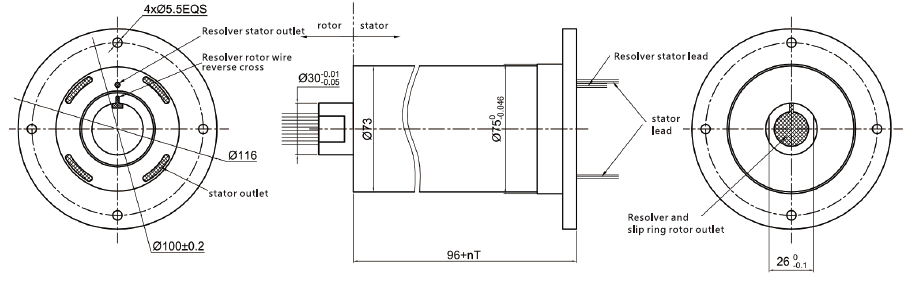

Outline Drawing of The Item

DHS075 drawing

Application Filed

Our products are widely used in intelligent robots, packaging equipment, stackers, magnetic llutches, engineering machinery, Industrial automation equipment,exhibit,display equipment, hotel, Medical equipment,guesthouse revolving door control system, Turntable equipment , Construction machinery process control equipment, Amusement equipment ,defense, security, etc.

product-description2
product-description3
product-description4

Our advantage

1) Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
2) Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3) Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.

Factory Scene

product-description5
product-description6
product-description7
