Ingiant IP51 through hole slip ring 70mm inner bore hollow shaft rotary union
|
DHK070-10-20A |
|||
|
Number of circuits |
10 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

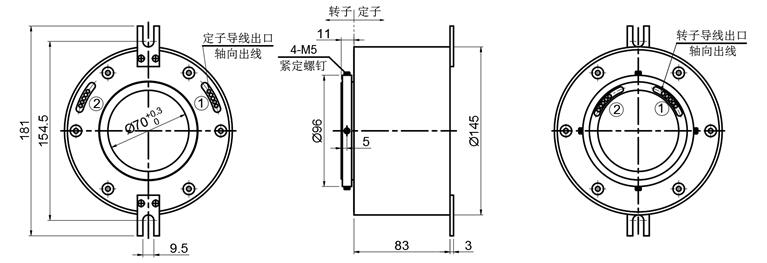

Standard product outline drawing:
DHK070-10-20A with through bore size 70 mm, it can combine with power.signal.Ethernet, USB, Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.The ECN series electrical slip rings feature a low torque design with precious metal contacts and offer low electrical noise. Includes flexible, color-coded lead wires suitable for transferring analog and digital signals.The main application including packaging machine,radar antennas,military industry,robotics etc.
Ingiant has been engaging in the slip ring industry more than 9 years , and has accumulated abundant experience on R&D. Our engineering team has developed hundreds of special function slip ring for getting a lot of solution for difference industries.If you have any special requirements on slip ring ,just contact with us .
Our Advantage:
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
