Ingiant Fiber Optical Slip Ring For Hd Network Monitoring Systems

Short Description:

Product Detail

Product Tags



The main parameters

Number of circuits 17 Working temperature “-40℃~+65℃"
Rated current Can be customized Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP51
Insulation resistance ≥100MΩ @500VDC Housing material Stainless steel
Insulation strength 500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification 5A per circuits with 2 AF-0.35mm^2, rest with AF-0.15mm^2
Rotating speed 0~1200rpm Lead wire length 500mm + 20mm

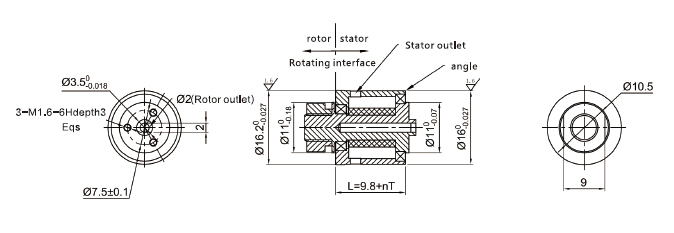

Standard Product Outline Drawing


Application Filed

Satellite communication systems, medical treatment equipment, radar antennas, HD network monitoring systems, air traffic control, and camera technology,Optical fiber reels, unmanned vehicles, aerostat mobile platforms, submarine towed optical cables, wind energy, helicopters, optogenetics.


Our advantage

1. Product advantage: Optical fiber slip ring uses optical fiber as the data transmission medium to provide reliable transmission and the best solution for connecting signals and data in the rotating parts of the equipment. Ingiant fiber optic slip rings can be from single mode to 12 channels, and have unique advantages for transmitting high-frequency signals and high-speed digital signals. They can also be used in combination with electric slip rings, which are easy to install and form a transmission power, low-frequency signal and high-frequency signal. The organic combination system of the frequency signal.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

Factory Scene
