Ingiant Specially customized slip rings stator and rotor outlet are 52mm in diameter on the same side
|
DHS052-50 |
|||
|
The main parameters |
|||
|
Number of circuits |
50 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

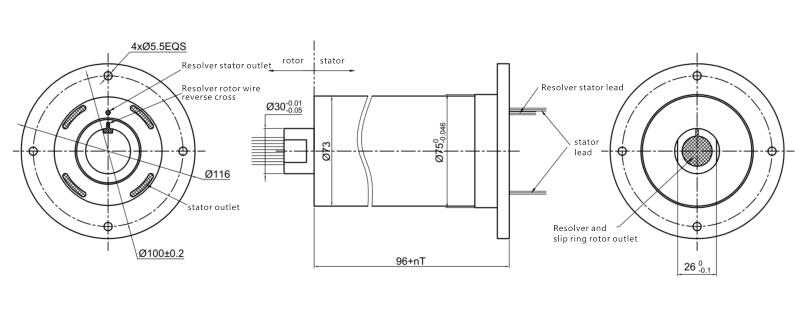

Product drawing:
Special customized slip rings include hollow slip rings, through-hole slip rings, winch slip rings, flexible ring contacts and special rotary connectors, etc. We can provide various high-precision conductive slip rings and technical support. Mature and complete solutions and reliable quality meet customer needs.
Based on the special applicability of slip rings, INGIANT has dedicated departments and developers to individually design, develop and produce products with special specifications according to the actual requirements of customers, such as high speed, high protection level, high frequency, optical fiber electrical hybrid, high-speed data Transmission, pneumatic and hydraulic system combination, etc., with short design cycle and rapid delivery.
Our advantage:
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
