Ingiant High Current Slip Rings For Communication Devices

Short Description:

Product Detail

Product Tags



The main parameters

Number of circuits 72 Working temperature “-40℃~+65℃"
Rated current Can be customized Working humidity <70%
Rated voltage 0~440 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

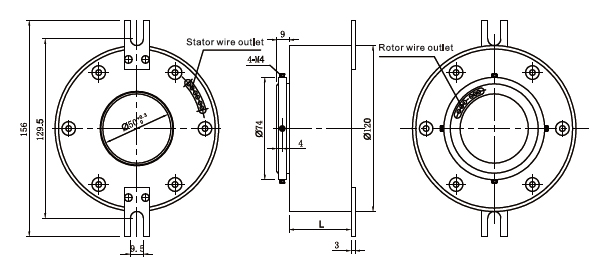

Standard Product Outline Drawing


Application Filed

High current slip rings and high voltage slip rings are used for communication devices, large machining centers, antenna radar system, large cranes, mining machines, large cable reels. High voltage sometimes require more than 1,000 volts and high current sometimes require 200 amperes.


Our advantage

1. Product advantage: Max. voltage up to 6,000 volts; Max. ampere up to 1000 A; Small contact resistance, low heat and long working life;Aluminium alloy housing, easy installation;The using insulation materials must have excellent conductivity, corrosion resistance, fatigue resistance and lubrication performance. When designing the mechanical structure, the characteristics of large currents need to be considered, as well as the electrical insulation design, installation and maintenance performance.
2. Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
3. INGIANT adheres to the business philosophy of "customer-centered, quality-based, innovation-driven", seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.

Factory Scene
