Ingiant capsule Slip Rings 68channels OD 84 mm with flange

Ingiant solid shaft slip ring for engineering machinery

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

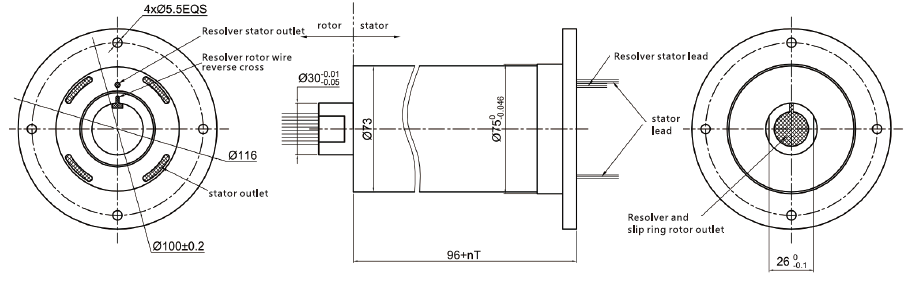

Product drawing:

Capsule slip rings with various forms, maintenance free, gold contact, silver fiber brush, low voltage. Also can be combined with other types rotary joints like Ethernet, fiber optic rotary joint (FORJ), hydraulic, radio freqency.

Feature

• 360° rotating signal and power transmission, such as control signals, video signals, HD signals, Ethernet, sensor
• Can reach military quality, gold-gold contacts, fiber brushes technology
• Low torque, low insertion loss, low contact resistance, long working life
• Stator flange or without flange installation for option
• Integrated structure design, easy installation

Our advantage:

1. Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.

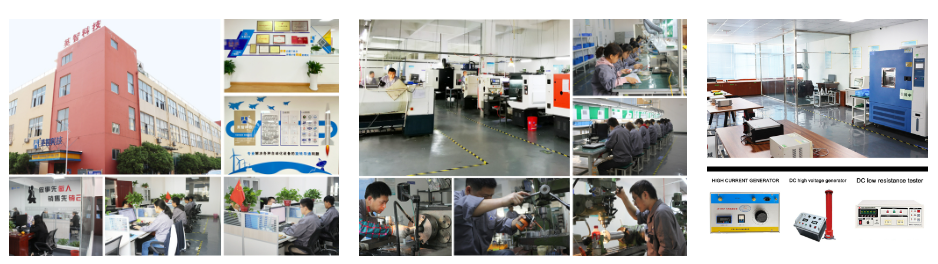

2. Company advantage:  Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
