Ingiant capsulated slip ring diameter 46mm 25channels 3A with flange

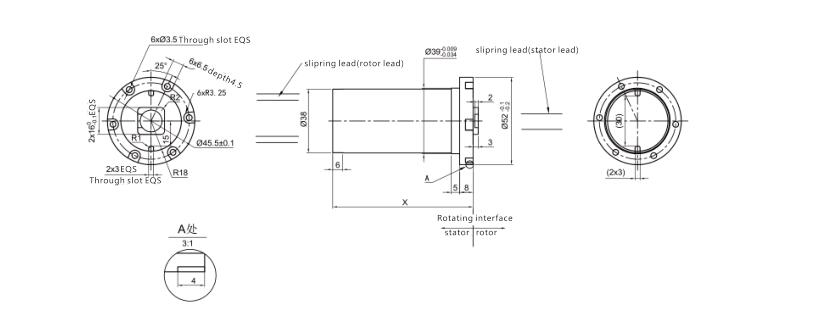

Standard product outline drawing:

Advantages of Capsulated Slip Rings

The encapsulation protects the inner workings of the slip rings against the following disturbances, depending on the level of protection and enclosure material:

• Intrusion of dust
• Ingress of moisture
• Electrical interference
• Vibration
• Slip
• Shocks, blows and vibrations

Ingress of dust, especially electrically conductive metal or coal dust, will cause short circuits in a very short time. Since the contact rings and the sliding contacts are not insulated, they react extremely sensitively to penetrating dust. Non-conductive dust can settle on the rotating components and form an undesirable insulating layer.

Penetrating moisture can cause corrosion on the contacts. To ensure maximum operational safety, the contact rings and the sliding contacts are coated with silver. This metal only forms a thin oxidation layer, which immediately removes itself through normal operation of the slip ring. Alternatively, the surfaces can be provided with a gold alloy, which has a positive effect on signal transmission quality and prevention of oxidation.

Electrical disturbances penetrate less into the slip ring, but they can escape from it. Any slight loss of contact can cause an arc, which emits a radio signal. This radio signal can interfere with surrounding components, especially those with wireless signal transmission. The encapsulation prevents these disturbing emissions and shields them reliably.

Finally, the encapsulation is designed to be so robust that it is largely insensitive to mechanical stress. For particularly demanding environments, we also offer enclosures made of stainless steel. These are also ideal for hygienically critical environments. Stainless steel can be disinfected very well and has aseptic properties.

Our advantage:

1. Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
2. Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
3. Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
