Ingiant high-definition video signal slip rings are widely used in vision robots
|
DHS110-21 |
|||
|
The main parameters |
|||
|
Number of circuits |
21 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

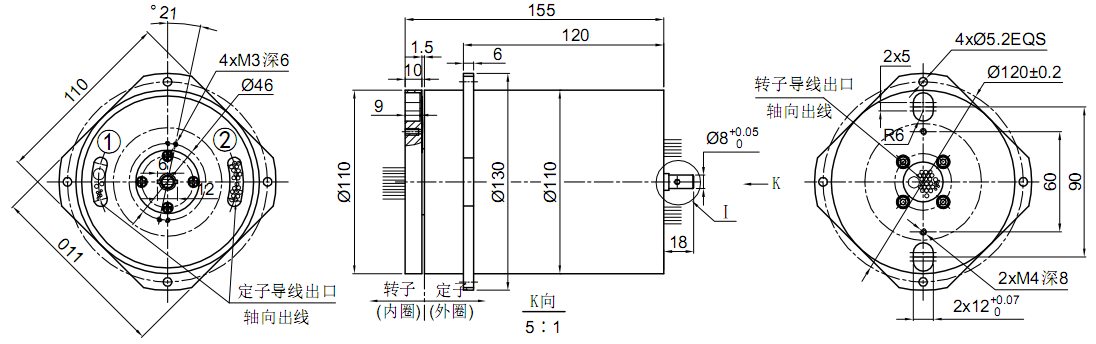

Product drawing:
High-definition video signal slip ring is the most common type of slip ring, which can be used in security monitoring, photography, machine vision, military investigation and other fields. The transmission media of high-definition video signals in different industries are also different. Security cameras, for example, are used to transmitting high-definition video signals using Ethernet or coaxial cables.
In the photography industry, photography technology is very mature, so the industry is also particularly enthusiastic about the use of new technologies. The 12G-SD slip ring just comes into play when shooting high-definition movies. In addition to using coaxial cable slip rings to transmit high-definition video signals, the upstream and downstream industries of film production also use DP and HDM signal slip rings to transmit high-definition video signals
High-definition video signal slip ring is the most common type of slip ring, which can be used in security monitoring, photography, machine vision, military investigation and other fields. The transmission media of high-definition video signals in different industries are also different. Security cameras, for example, are used to transmitting high-definition video signals using Ethernet or coaxial cables.
In the photography industry, photography technology is very mature, so the industry is also particularly enthusiastic about the use of new technologies. The 12G-SD slip ring just comes into play when shooting high-definition movies. In addition to using coaxial cable slip rings to transmit high-definition video signals, the upstream and downstream industries of film production also use DP and HDM signal slip rings to transmit high-definition video signals
