Heavy Duty Dual Axis Gimbal Stabilizer | Worm Gear Self-Locking |1kg Payload Pan Tilt Head

Short Description:

Key Features:

1kg Max Payload: Supports cameras, sensors, and other equipment up to 1kg.
High Precision: Delivers a positioning accuracy of ±0.1°.
Self-Locking Mechanism: Utilizes a worm gear drive that automatically locks upon power loss to prevent drifting.
Rugged & Durable: Housed in high-strength aluminum alloy with an IP66 protection rating, making it resistant to harsh environments.
Continuous Rotation: Supports 360° continuous rotation on the pan axis.
Flexible Connectivity: Standard RS485 communication with optional network interface upgrades.

Send email to us

Product Detail

Product Tags

Product Description：

YZ-W001YT Dual Axis Gimbal Pan Tilt Head (1kg Payload)

Upgrade your payload positioning with the YZ-W001YT dual axis gimbal. Designed for stability and precision, this heavy-duty pan tilt unit features a robust aluminum alloy housing and a high-torque worm gear drive system.

Technical Specifications

Specification	Details
Model	CH-W001YT
Max Payload	≤ 1kg
Positioning Accuracy	±0.1°
Pan Rotation	0°~360° Continuous (Standard) / 0°~≤320° (Optional)
Tilt Rotation	-60°~20° (Standard) / -90°~90° (Optional)
Pan Speed	0.01°/s ~ 15°/s (Standard)
Tilt Speed	0.01°/s ~ 10°/s (Standard)
Presets	200 (Standard) / 1000 (Optional)
Communication	RS485 (Standard) / RS422, Network (Optional)
Protocol	PELCO_D (Standard) / PELCO_P, ModBus (Optional)
Power Supply	DC24V
Power Consumption	≤ 50W (Operating) / ≤ 2W (Standby)
Dimensions	150 × 100 × 152 mm (L×W×H)
Weight	2.9 kg
Housing Material	High-strength Aluminum Alloy
Protection Rating	IP66
Operating Temp.	-10°C ~ +55°C (Non-condensing)
Storage Temp.	-40°C ~ +65°C

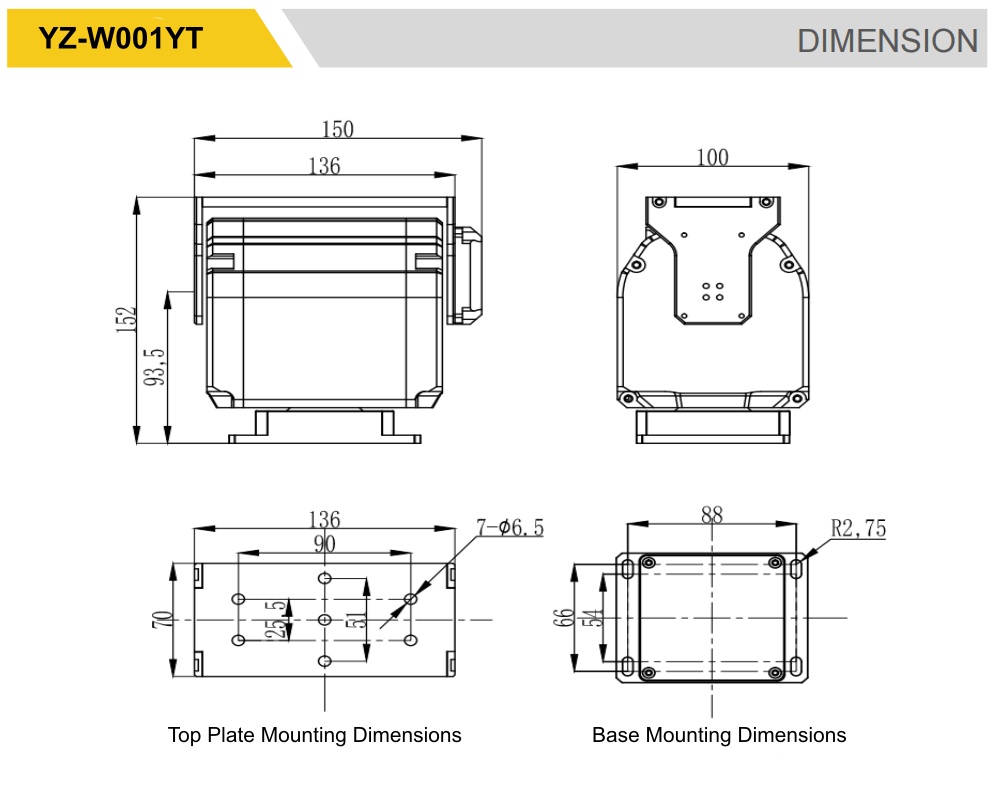

Dimension Diagram Notes

Top Plate Mounting: 136 × 140 mm (M6 screw holes)
Base Mounting: 88 × 82.75 mm
Overall Dimensions: 150 × 100 × 152 mm

Optional Features & Customization

Colors: Military Green, Black, White (Custom colors available).
Tilt Range: Adjustable up to -90°~90° (Note: Larger angles reduce max payload).
Speed: High-speed options available (Pan up to 30°/s, Tilt up to 15°/s).
Interfaces: Optional RS485/RS232/Network interfaces.
Baud Rate: Optional 2400/4800/115200 bps.
Anti-Salt Fog: Optional anti-salt fog treatment (PH 6.5~7.2, 48h continuous spray, no obvious surface change).
Mounting: Side/Top/Base mounting supported (Note: Vehicle/Ship oscillation reduces payload capacity by approx. 50%).
Cabling: Top exit for payload power/communication; Bottom exit for gimbal power/communication.
