Industrial Pan Tilt Head Manufacturer Double-axis Pan-tilt Head 6kg | IP66 Heavy Duty PTZ for CCTV, Thermal, Radar

Short Description:

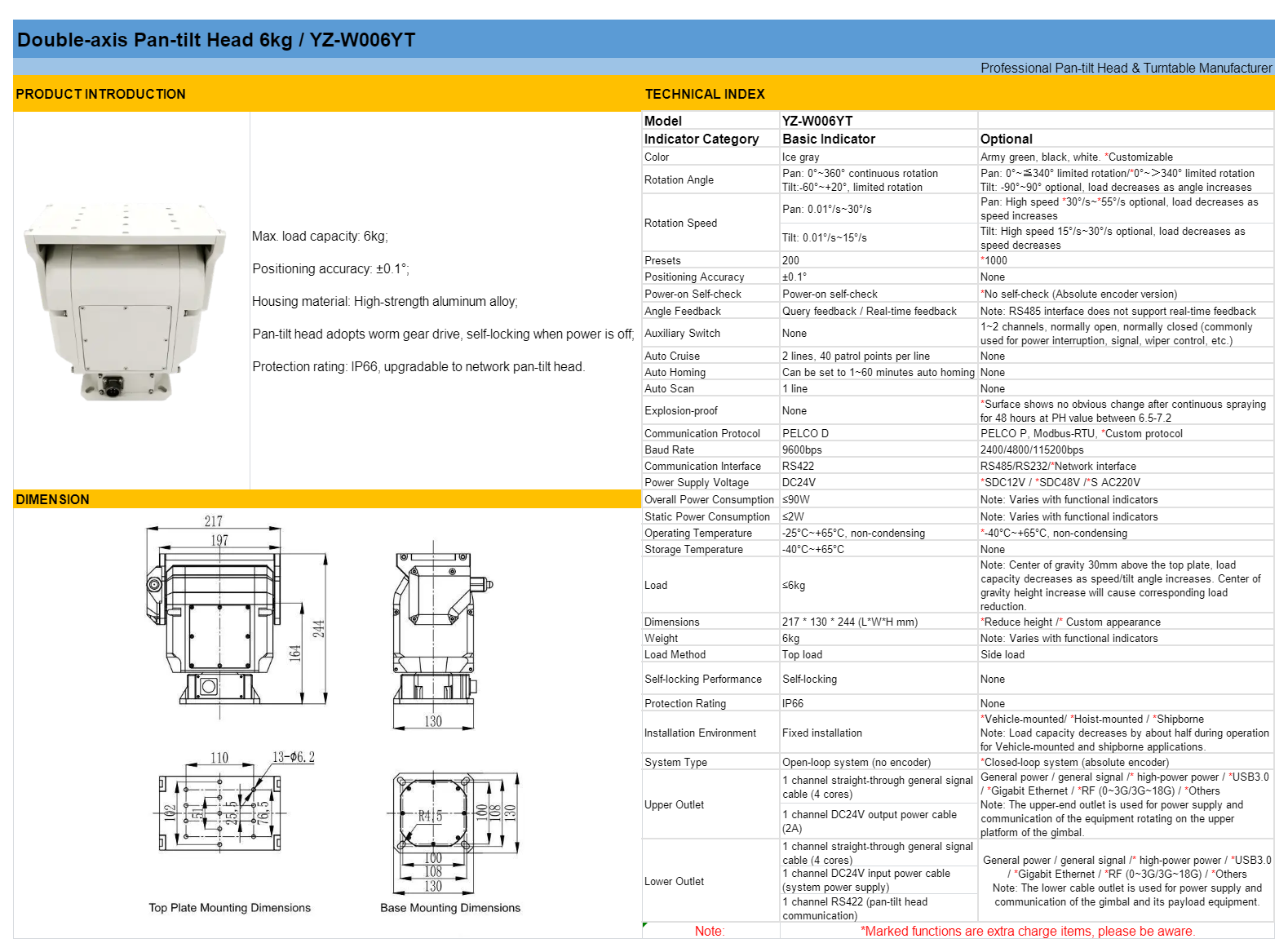

Double-axis Pan-tilt Head 6kg / YZ-W006YT

We supply custom industrial pan tilt heads with up to 6–120 kg payload, 360° continuous pan, ±90° tilt, IP66, worm-gear self-locking, RS422/Ethernet and Pelco/Modbus support. OEM specs available.

Max. load capacity: 6kg;
Positioning accuracy: ±0.1°;
Housing material: High-strength aluminum alloy;
Pan-tilt head adopts worm gear drive, self-locking when power is off;
Protection rating: IP66, upgradable to network pan-tilt head.

Send email to us

Product Detail

Product Tags

Our industrial pan tilt heads are designed for outdoor surveillance, thermal imaging, radar, antenna and optical payloads. The housing is high-strength aluminum alloy with sealed bearings and corrosion-resistant coating, suitable for ports, power stations, borders, forests and vehicles.

Key features:

Payload: 6 kg to 120 kg optional; center-of-gravity and top/side mount configurable
Pan: 0–360° continuous; Tilt: -90° to +90° optional, limited-angle versions available
Drive: worm-gear / stepper / brushless; power-off self-locking; repeatability ±0.1° or better
Speed: pan 0.01–30°/s, tilt 0.01–15°/s, programmable by load and application
Control: RS422/RS485/RS232, Ethernet; Pelco-D/P, Modbus-RTU, custom protocol
Power: DC24V / DC48V / AC220V optional
Protection: IP66 standard, IP67 optional; -40°C to +70°C with heater/defog options
Presets, auto-cruise, auto-scan, angle feedback, slip-ring/RF integration optional
Top/bottom cable pass-through for power, Gigabit Ethernet, CAN, signal and RF

Typical applications: long-range PTZ camera, dual thermal+visible, laser rangefinder, radar surveillance, antenna rotator and test turntables. Send load weight, CG height, speed, protocol and environment; we return drawings and quotation.
