Ingiant hollow shaft conductive slip rings 6channels 10A for drying equipment

Short Description:

DHK065 series hollow shaft conductive slip rings, aperture 65mm, suitable for rotating electromechanical systems with a diameter less than 605mm, 6 channels of 10A each, used for 360-degree transmission of power or signals. Large-diameter slip rings are mostly used in drying equipment, merry-go-rounds, and amusement rides and rotating facilities.

Send email to us

Product Detail

Product Tags

DHK065-6-10A
The main parameters
Number of circuits	6	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

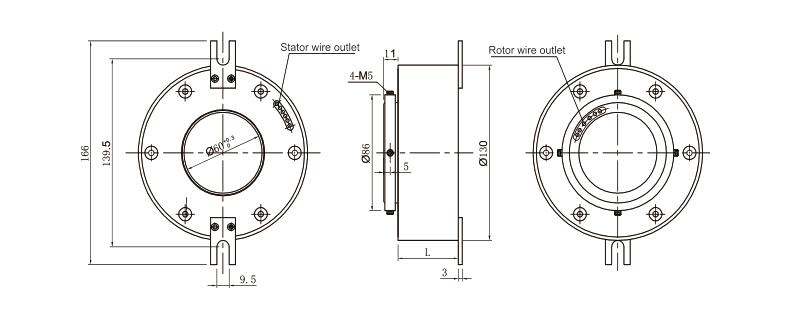

Standard product outline drawing:

DHK065 series hollow shaft conductive slip rings, aperture 65mm, suitable for rotating electromechanical systems with a diameter less than 65mm, 6 channels of 10A each, used for 360-degree transmission of power or signals. Large-diameter slip rings are mostly used in drying equipment, merry-go-rounds, and amusement rides and rotating facilities.

Features

Multi-contact brush contact design, long service life
Integrated structural design, easy to install
IP 51 protection level, IP68 can be customized
Can integrate multiple signals and be compatible with multiple data protocols
Maintenance-free use

Typical applications: medical equipment, CNC turntables, CNC machining centers, automation equipment, robotic arms, wire reels, cable reels, packaging machinery, filling equipment, wind turbines, etc.

Our Advantage

Product advantage: Hollow shaft slip rings are an excellent solution for mounting on an axle or for cable feed-through due to their open interior. They can be used to supply power and data to a wide variety of applications. Among them are, for example, rotary switches, servo motors, control valves or wheel hub motors.
Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
Customized advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
