Ingiant hole diameter 38mm through hole slip ring 5 channels 5A
|
DHK038-5-5A |
|||
|
The main parameters |
|||
|
Number of circuits |
5 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
2A.5A.10A.15A.20A |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

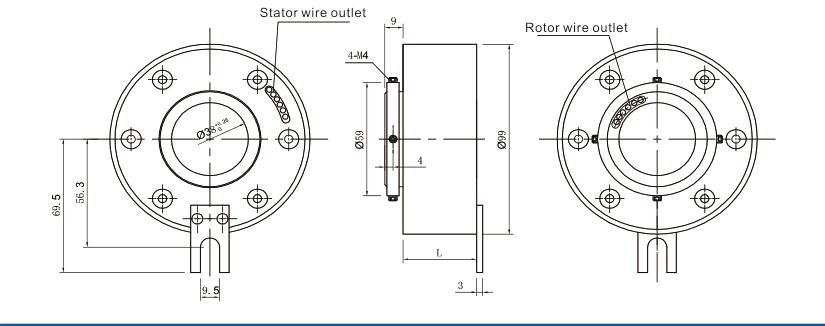

Standard product outline drawing:
Standard through hole slip ring DHK038 series
Product advantages:
- Standard through hole slip ring, with various number of channels and currents optional
- Designed with a 38mm center through hole specially designed for hydraulic or pneumatic transmission shaft installation
- Using advanced fiber brush technology to ensure low friction, low contact resistance, and no friction debris
- It has high rotation accuracy, more stable performance and longer life.
- 360° continuous rotation to transmit analog or data signals, compatible with data bus protocol
- Can transmit signals such as Ethernet,USB, RS, Canbus and Firewire
Features:
- Transmit analog and data signals
- Compatible with data bus protocol
- Super long life, maintenance-free
- Easy to install
- 360° continuous rotation to transmit power and data signals
Typical applications include automation equipment, work turntables, camera pan/tilts, robots, etc.
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
