Ingiant capsulated slip rings with flange diameter 32mm 32channels 5A

Short Description:

Capsulated Slip Rings with outer diameter from 5.5mm to 54mm

High-quality capsulated slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.

Send email to us

Product Detail

Product Tags

DHS032-32-5A
The main parameters
Number of circuits	32	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

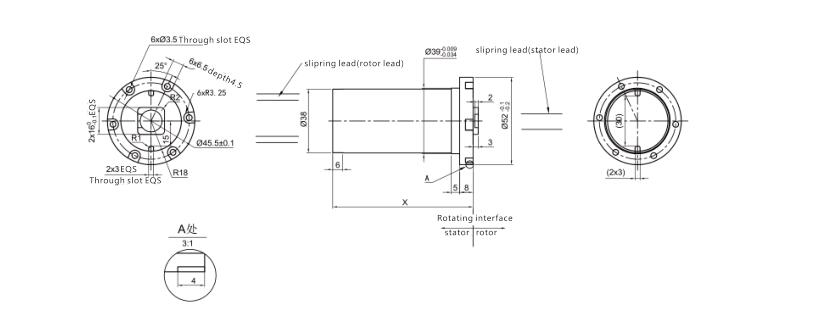

Product drawing:

Capsulated Slip Rings with outer diameter from 5.5mm to 54mm

Advantages of Capsulated Slip Rings

The encapsulation protects the inner workings of the slip rings against the following disturbances, depending on the level of protection and enclosure material:

Intrusion of dust
Ingress of moisture
Electrical interference
Vibration
l Slip
l Shocks, blows and vibrations

Ingress of dust, especially electrically conductive metal or coal dust, will cause short circuits in a very short time. Since the contact rings and the sliding contacts are not insulated, they react extremely sensitively to penetrating dust. Non-conductive dust can settle on the rotating components and form an undesirable insulating layer.
