Ingiant High Current Slip Ring For Mining Machines
Specification
|
DHK74-5-002 |
|||
|
The main parameters |
|||
| Number of circuits | 5 | Working temperature | “-40℃~+65℃" |
| Rated current | 200A | Working humidity | ＜70% |
| Rated voltage | 0~440 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Core Design Features
-

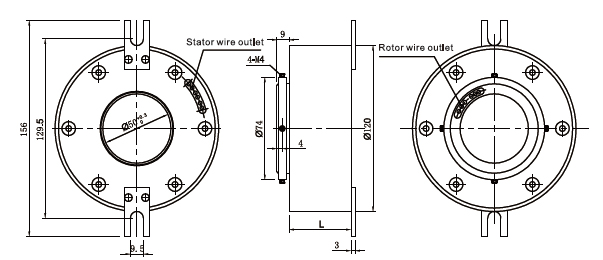

74mm Large Through-Bore Structure
The 74mm central through-hole allows for easy integration of shafts, hydraulic lines, or fiber optic cables, enabling flexible system design for complex rotating equipment. The hollow shaft design simplifies installation and reduces overall system footprint. -
Integrated Inspection Window
The built-in observation window enables real-time visual inspection of internal brush and contact ring wear without disassembling the slip ring, drastically reducing maintenance time and downtime. This design is critical for predictive maintenance in continuous-operation industrial systems. -
High-Current & High-Reliability Contact System
- 3 dedicated 200A high-current channels for three-phase power transmission, with parallel-stranded AWG12 wires to minimize resistance and heat generation.
- Precious metal alloy brush contacts ensure low contact resistance, minimal electrical noise, and a service life of over 10 million revolutions.
- Teflon (PTFE) insulation provides excellent high-temperature resistance, chemical corrosion resistance, and dielectric strength, suitable for harsh industrial environments.
-
Premium Material & Craftsmanship
- Tin-plated copper conductors for superior conductivity and anti-oxidation performance.
- Color-coded wires for error-free installation and maintenance.
- Military-grade manufacturing standards, with full traceability for defense and aerospace applications.
Application Scenarios
- Industrial automation & heavy machinery (rotating tables, cranes, lifting equipment)
- Wind power generation (wind turbine pitch systems)
- Aerospace & defense (radar systems, satellite ground stations, military turrets)
- Medical equipment (large CT scanners, rotating medical devices)
- Packaging & printing machinery, and other high-load rotating systems
Our advantage
1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure, our products Performance and indicators are always at the forefront of similar products in the world.
2. Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints (include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
3. Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
