Ingiant 22mm outer diameter UAV slip ring gimbal slip ring small slip ring can transmit various control signals
|
DHS022-22-002 |
|||
|
The main parameters |
|||
|
Number of circuits |
22 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |

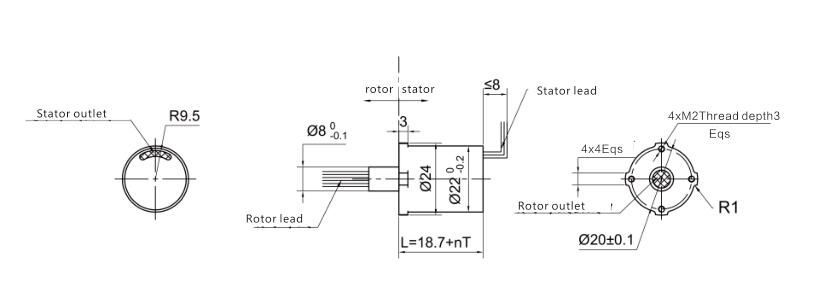

Stangdard product outline drawing:
DHS022-22-002 small slip ring has an outer diameter of 22mm and is suitable for rotating applications requiring an outer diameter of ≤22mm. The standard model supports 1-36 rings to meet different signals (Analog, RS232/RS485, Inter bus, Device Net, CC-Link, SERCOS interface, Control Net, Field buses, Can open, Profibus, Mod bus, Fipio, USB 2.0 High speed, Fast Ethernet, Certified to 1000-BaseT, HD-SDI 1080P) transmission.
Features
- Multi-contact brush, long service life
- Integrated structural design, easy to install
- Support customized needs
- Support high-speed transmission protocol
- No packet loss, no crosstalk, patented structural design
Application areas: aerial photography drones, high-speed domes, small pan-tilts, stage lights, small Ferris wheels.
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
