Ingiant through hole slip ring ID100mm 32channels with aviation plug connector

Short Description:

Product Detail

Product Tags

DHK100-32-002
The main parameters
Number of circuits	32	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

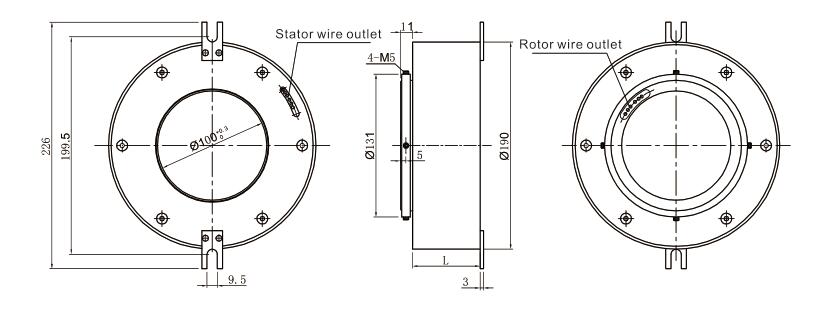

Standard product outline drawing:

Through hole slip ring with aviation plug

The aviation plug is a member of the connector family. Its main function is to connect power or signals. Use aviation plug sockets to connect,

which is not only safe and reliable, easy to operate, and more beautiful appearance.

Characteristics of through hole slip rings

low noise
Wear resistant (silver to silver contact)
Good impact resistance
Signal and current compatible
Can work in harsh environments
Flexible design to meet special requirements

Typical application:

Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, packaging equipment, magnetic clutches, process control equipment, rotation sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.

Our Advantage

Product advantage: They are only a few millimetres high and thus very space-saving along the longitudinal axis. the pancake slip rings are shielded to at least protection class IP 40, or IP51 or higher if desired. Another significant advantage of pancake slip rings is their expandability Another significant advantage of pancake slip rings is their expandability.
Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
