Ingiant 90mm Through Hole Standard Slip Ring

Short Description:

Product Detail

Product Tags

Product Description

Ingiant is a professional slip ring manufacturer in China, we located in China mainland, Jiangxi Province, Jiujiang City.
Slip ring is for 360 degree continuously transfer signal/data/power, it can make to hybrid type, to combine with pneumatic and hydraulic.



The main parameters

Number of circuits According to requirement of customers Working temperature “-40℃~+65℃"
Rated current 2A,5A,10A,15A,20A Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

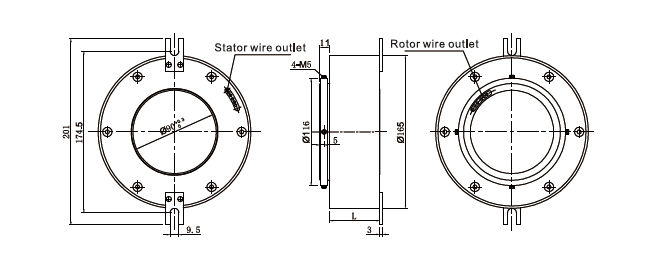

Ingiant 90mm through hole slip ring is normally used for cable reel, rolling machine, packing machine and crane, the slip ring can be customized to rotating transfer electric signal/data/power, can be combined with pneumatic and hydraulic.

The slip ring inner hole is for install with automatic equipment’s shaft.

We’re a professional slip ring manufacturer in China, we provide best quality products and service for our customers! Our R&D team can make customized slip ring 2D and 3D drawing for you.

Slip ring electric contact mostly make with silver alloy or gold alloy, the precious metal electric contact ensure the slip ring can stable transfer current/signal/data stable.

12 months warranty for non-human damage for the product!

Ingiant slip ring have compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, more than 30 millions revolutions long life.

For provide customized rotation transfer solutions for you, we need to know points as below:
1. How many channels do you need?
2. What’s the current and voltage for each channel?
3. Signal type of the slip ring?
4. Installation method? Need through hole type or flange install or another type?
5. Product size? ID/OD/Height?
6. Working time? How long does it work everyday?
7. Working speed?
8. Working temperature?
9. Protection level normally is IP51, do you need upgrade the protection level?
10. Structure material?
