Ingiant 70mm Through Bore Slip Ring For Industrial Machines

Short Description:

Product Detail

Product Tags



The main parameters

Number of circuits 13 channels Working temperature “-40℃~+65℃"
Rated current 2A~50A, can be customized Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

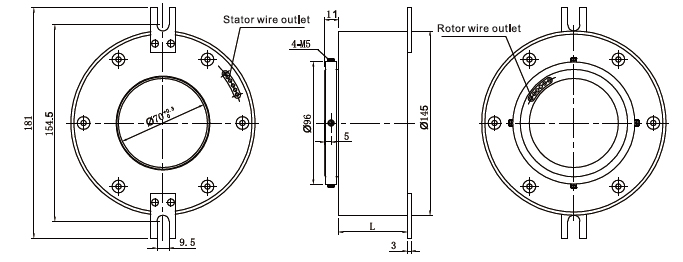

Standard Product Outline Drawing


Application Filed

Slip rings are widely applied in robotics, packaging machines fields, industrial machining center, rotary table, heavy equipment tower or cable reel, laboratory equipment, cable reel, filling equipment etc.


Our advantage

1. Product advantage: Light in weight and compact in size, easy to install. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals.
2. Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry. The company has provided various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. The mature and perfect solutions and reliable quality have been highly recognized in the industry.
3. INGIANT adheres to the business philosophy of "customer-centered, quality-based, innovation-driven", seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.

Factory Scene
