Ingiant 60mm Through Bore Slip Ring For Construction Machinery

Short Description:

Product Detail

Product Tags



The main parameters

Number of circuits 10 Working temperature “-40℃~+65℃"
Rated current 2A~50A, can be customized Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

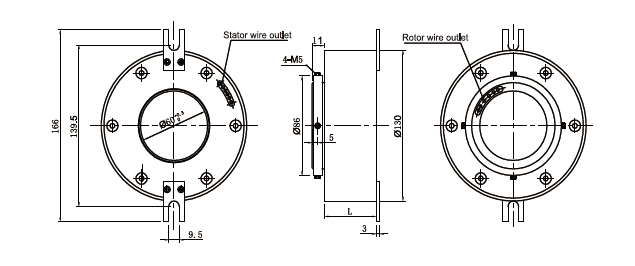

Standard Product Outline Drawing


Application Filed

Our products are widely used in Video systems,Capping machines,Control systems,Medical equipment and systems,Packaging machines,Robotics,CCTV cameras and systems. Mechanical handling,Lifting equipment and cable reelers,Hazardous area equipment,Satellite assemblies,Wind tunnels,Sub sea applications,Remote operated vehicales


Our advantage

1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.

Factory Scene
