Ingiant 360° Rotary Joint Slip Ring 66 Circuits 96mm Diameter

Short Description:

We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    DHS096-66-2F

    The main parameters

    Number of circuits

    66

    Working temperature

    “-40℃~+65℃”

    Rated current

    can be customized

    Working humidity

    <70%

    Rated voltage

    0~240 VAC/VDC

    Protection level

    IP54

    Insulation resistance

    ≥1000MΩ @500VDC

    Housing material

    Aluminum Alloy

    Insulation strength

    1500 VAC@50Hz,60s,2mA

    Electrical contact material

    Precious metal

    Dynamic resistance variation

    <10MΩ

    Lead wire specification

    Colored Teflon insulated & tinned stranded flexible wire

    Rotating speed

    0~600rpm

    Lead wire length

    500mm + 20mm

    All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

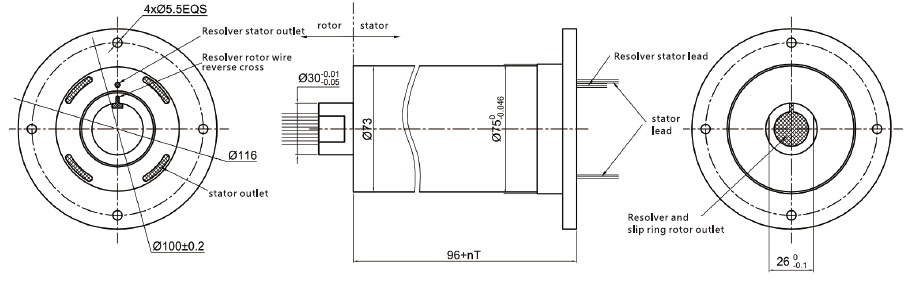

    Product drawing:

    2

    Slip rings – also known as rotary electrical joints, electric rotary joints and slip rings – are devices that can transmit power, electrical signals or data between a stationary part and a rotating part. The design of the slip ring will depend on its application.As a manufacturer and thanks to our competent engineers, we at Ingiant know exactly what slip ring bodies must be able to do in your industry in order to guarantee technical functions, efficient automation and at the same time business success.

    We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring.

    QQ图片20230322163852

    Our advantage:

    1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
    2. Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
    3. Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.

    QQ截图20230322163935
