Ingiant 360 rotating power Electric slip ring customized slipring

Short Description:

Application filed: Robots/Turntable equipment/Amusement equipment/High-speed railway equipment/Packaging machinery/Ship offshore equipment/Construction machinery Industrial automation equipment/Medical equipment/Wind power equipment/Test equipment/Exhibition / display equipment/


Product Detail

Product Tags

Specification

Ingiant solid shaft slip ring for engineering machinery

DHS045-43-1F

The main parameters

Number of circuits

43

Working temperature

“-40℃~+65℃”

Rated current

can be customized

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products,

can be customized according to your requirements

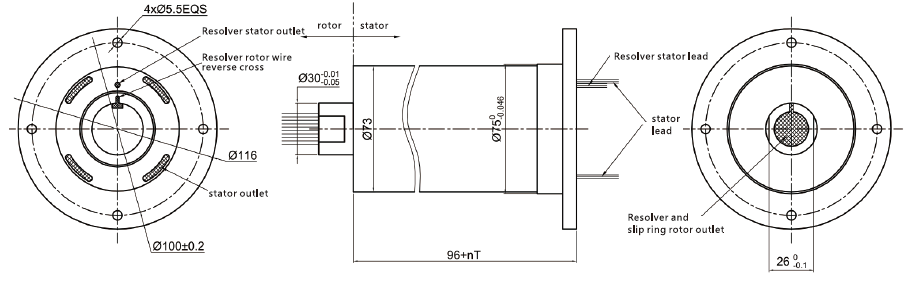

Product drawing:

1

Features:

1:360° rotating signal/power transmission, such as control signals, video signals, HD signals, ethernet, sensor, and so on

2:Advanced military level, gold-gold contact ensures low contact resistance and long working life

3:Low torque, low insertion loss, no maintenance;

4:Stator flange or without flange installation optional

5:Integrated structure design, easy installation

6:Compatible with data bus protocol

QQ图片20230322163852

Our advantage:

1)Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.

2) Excellent after-sales and technical support service: by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Moreover, Ingiant provides customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.

3)Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
