Ingiant photoelectric combination slip ring 28 electrical channels combination 2-way (armored) single-mode fiber

Short Description:

Photoelectric slip ring is an innovative combination of optical fiber slip ring and electric slip ring, which can not only transmit large-capacity data, but also transmit electric power, medium and low frequency electrical signals, etc., to meet the requirements of electromechanical systems. Through the optimized structure, Yingzhi Technology’s photoelectric slip ring combines the optical fiber slip ring and the electric slip ring, which can ensure the synchronous rotation of the optical fiber slip ring and the electric slip ring, and the structure is reliable and stable.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

DHS140F-28-2F
The main parameters
Number of circuits	28	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

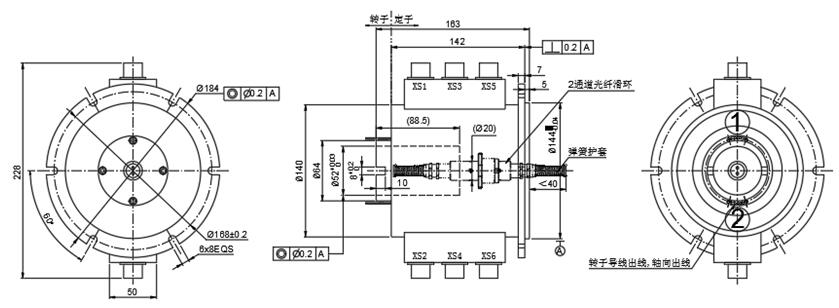

Product drawing:

Ingiant technology fiber optic slip rings can be used in extremely harsh environments such as low temperature and high pressure. And it is not affected by electromagnetism, and can work stably for a long time under the condition of high magnetic current interference to ensure the normal operation of the product.

Our advantage:

Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
