DHK065-29 HD-SDI slip ring transmit signals and power current

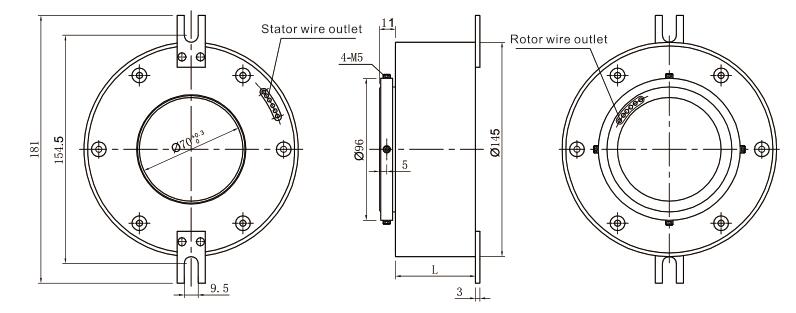

Standard product outline drawing:

What is a HD-SDI Slip Ring?

Video HD-SDI Slip Rings are suitable for the transfer of HD video and audio signals with extremely high data rates. HDMI connectors are usually installed. They can be integrated into various communication networks, optronics systems or broadcast systems.

Based on advanced gold contact technology or on contactless solutions, transmission is very reliable and maintenance-free up to several hundred million rotations without component change or lubrication. They can be combined with other types of Rotary Joints such as FORJ, Hydraulic or High Frequency.

Features

Transmit 1080P,HD-SDI video and Power/signal under 360° unrestrained rotation； Less noise, long life ；Low torque, smooth rotation ；Electrical Noise<0.01Ω； Small compact construction,the frequency could be high to 2.5 GHz.
Typical applications

CCTV pedestal、 Automatic arm、 Medical equipments、 Rotary index table、 Production line, industry process equipments

Our Advantage

1. Product advantage: Hollow shaft slip rings are an excellent solution for mounting on an axle or for cable feed-through due to their open interior. They can be used to supply power and data to a wide variety of applications. Among them are, for example, rotary switches, servo motors, control valves or wheel hub motors.
2. Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
3. Customized advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
