Ingiant through hole slip ring DHK025-4-010

Short Description:

Feature:The through hole slip ring produced by INGIANT fully meets the power, control and digital signal mixed transmission of 360 degrees unlimited rotation; Through hole conductive slip ring adopts advanced fiber brush technology, maintenance-free, no lubricating oil; Each way multi-point contact, low contact pressure and wear, low noise, long service life; Standardized, modular design, complete product specifications, and can be tailored to the needs of customers;


Product Detail

Product Tags

Ingiant through hole slip ring for automation machines

DHK025-4-010

The main parameters

Number of circuits

4

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

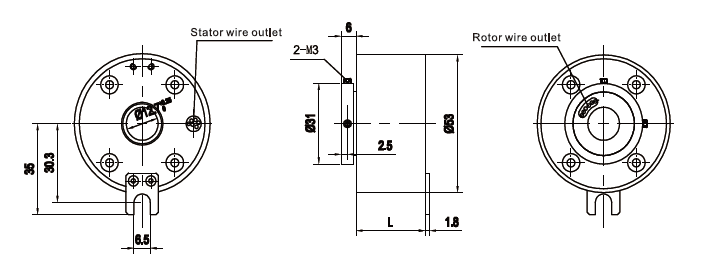

Standard product outline drawing:



1



Feature: The through hole slip ring produced by INGIANT fully meets the power, control and digital signal mixed transmission of 360 degrees unlimited rotation; Through hole conductive slip ring adopts advanced fiber brush technology, maintenance-free, no lubricating oil; Each way multi-point contact, low contact pressure and wear, low noise, long service life; Standardized, modular design, complete product specifications, and can be tailored to the needs of customers;

Optional: Through hole conductive slip ring rated current, voltage, rated speed, operating temperature, number of channels, shell material and color, size, special wire, wire outlet direction, wire length, protection class, terminal type;

2 3 4

Typical application: Through hole conductive slip ring is widely used in industrial machine machining center, rotary table, heavy equipment tower, cable coil, packaging equipment, stacker, magnetic clutch, process control equipment, rotary sensors, emergency lighting equipment, robots, exhibition/display equipment, medical equipment, revolving doors, etc.;



Factory scene:

6
