8×16×16mm Slip Ring Carbon Brush, Wear Resistant Graphite Brush For Rotating Conductive Rings, Hard Gold Contact Matching

 Product Introduction

1. Basic Parameter

• Model: 8*16*16 Carbon Brush

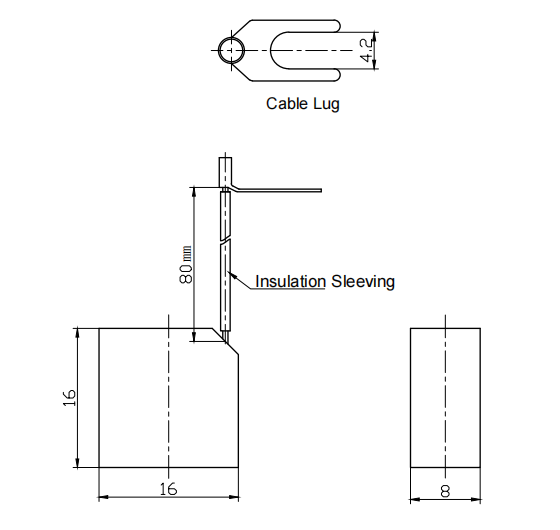

• Dimension: Thickness 8mm × Width 16mm × Length 16mm
• Standard Material: Electro-graphite / Copper graphite (optional)
• Matching Part: Hard gold plated slip ring contacts (gold thickness 3-5mil recommended)
• Working Condition: Continuous rotating, temperature -40℃ ~ +120℃
• Certification: ISO9001, RoHS, CE

2. Core Advantages

1. Ultra-low friction & self-lubricating formula: Minimize abrasion on gold-plated contact rings, avoid scratch damage to hard gold coating.
2. Stable conductive performance: Small contact resistance, no obvious spark during long-time rotation, guarantee consistent signal & power output.
3. Long service lifespan: Dense graphite structure reduces carbon powder shedding, lower maintenance frequency for rotary equipment.
4. Customizable structure: We can add braided copper wire, metal terminals, adjust carbon density according to your slip ring drawings.
5. Perfect compatibility: Exact 81616 size fits standard multi-channel slip rings, rotary unions, test turntables and automation rotating equipment.

3. Wide Application Scenarios

4. Service Support
