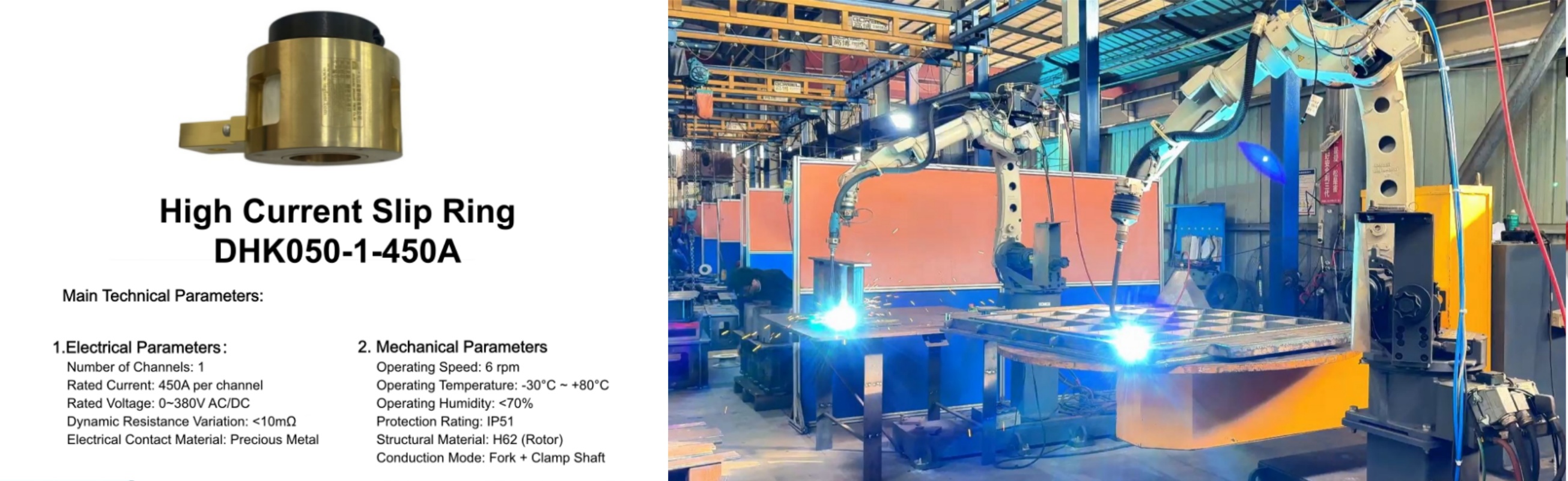

50mm Bore 1 Circuit 450A High Current Slip Ring H62 Body Steel Locking Ring Precious Metal Contact for Welding Robot Rotary Power Supply
Product Overview
This heavy-duty through-hole slip ring with a 50mm inner bore acts as dedicated rotary power transmission hardware for automated welding robot setups. The single-circuit structure steadily bears 450A large operating current while robotic joints conduct continuous 360° rotation, thoroughly solving cable twisting, fatigue fracture and intermittent power supply problems caused by repeated swing motion of robotic arms.
The main housing adopts durable H62 copper material fitted with steel locking ring, which greatly elevates mounting firmness and anti-loosening performance against recurring mechanical vibration inside welding workshops suited for 6 rpm low-speed running scenarios. Premium precious metal contact pairs control dynamic resistance fluctuation below 10mΩ, stabilizing welding current, restraining arc jitter and lowering reject rates of welded workpieces. With IP51 ingress protection plus broad temperature and humidity tolerance, the product reliably runs under standard welding workshop ambient conditions; customized modifications on locking ring specs and mounting layouts are supported to match distinct on-site installation constraints.
Core Competitive Advantages
- 1.Stable 450A high-current power delivery
Single-channel structure fits the power demand of robotic welding workflows, compatible with AC/DC welding power sources. Consistent electric output suppresses arc fluctuation during prolonged nonstop welding operations to cut product defects. - 2.Steel locking ring for vibration-resistant secure installation
Reinforced steel locking ring provides strong clamping force, stops slip ring offset and loose contact faults triggered by cyclic mechanical vibration during long-term low-speed rotation of welding robot joints. - 3.Low-drift precious metal contact system
Precious metal contacts show excellent arc ablation resistance and antioxidation capacity. Resistance drift stays minimal across extensive operation cycles, reducing unplanned production line downtime stemming from poor electrical contact. - 4.H62 copper construction for efficient heat dissipation
H62 copper delivers outstanding electrical conductivity and thermal dissipation performance, rapidly releasing heat generated under sustained high-current loads to prevent internal component burnout from overheating. - 5.Environment-resistant industrial build
The product works reliably across -30℃ to +80℃ with ambient humidity below 70% RH. IP51 dust and vertical water droplet shielding defends internal assemblies against workshop fine dust, welding smoke and light splashes. The 6 rpm speed rating perfectly aligns with the slow rotating motion of welding positioners and robotic rotary joints. - 6.Spacious 50mm through-hole layout
The enlarged central bore reserves ample internal room for cabling and pipeline routing inside robotic arms, lowering assembly difficulty during on-site installation.
Common Application Scenarios
- Rotary main power conduction for articulated joints of multi-axis welding robots
- Power transmission for low-speed revolving robotic welding positioners
- Power supply for rotating fixtures deployed on automated robotic welding production lines
- Rotary power connection on turntable assemblies of heavy industrial welding manipulators
Factory Quality & Customization Promise
Every finished slip ring undergoes strict pre-delivery inspections covering high-current load cycling testing, dynamic resistance check, dielectric withstand voltage verification and rotational endurance assessment. We support custom tuning of locking ring dimensions, mounting hole layouts and sealing upgrades for extra-dusty harsh welding workshop environments; formal inspection reports can be provided upon buyer request.
