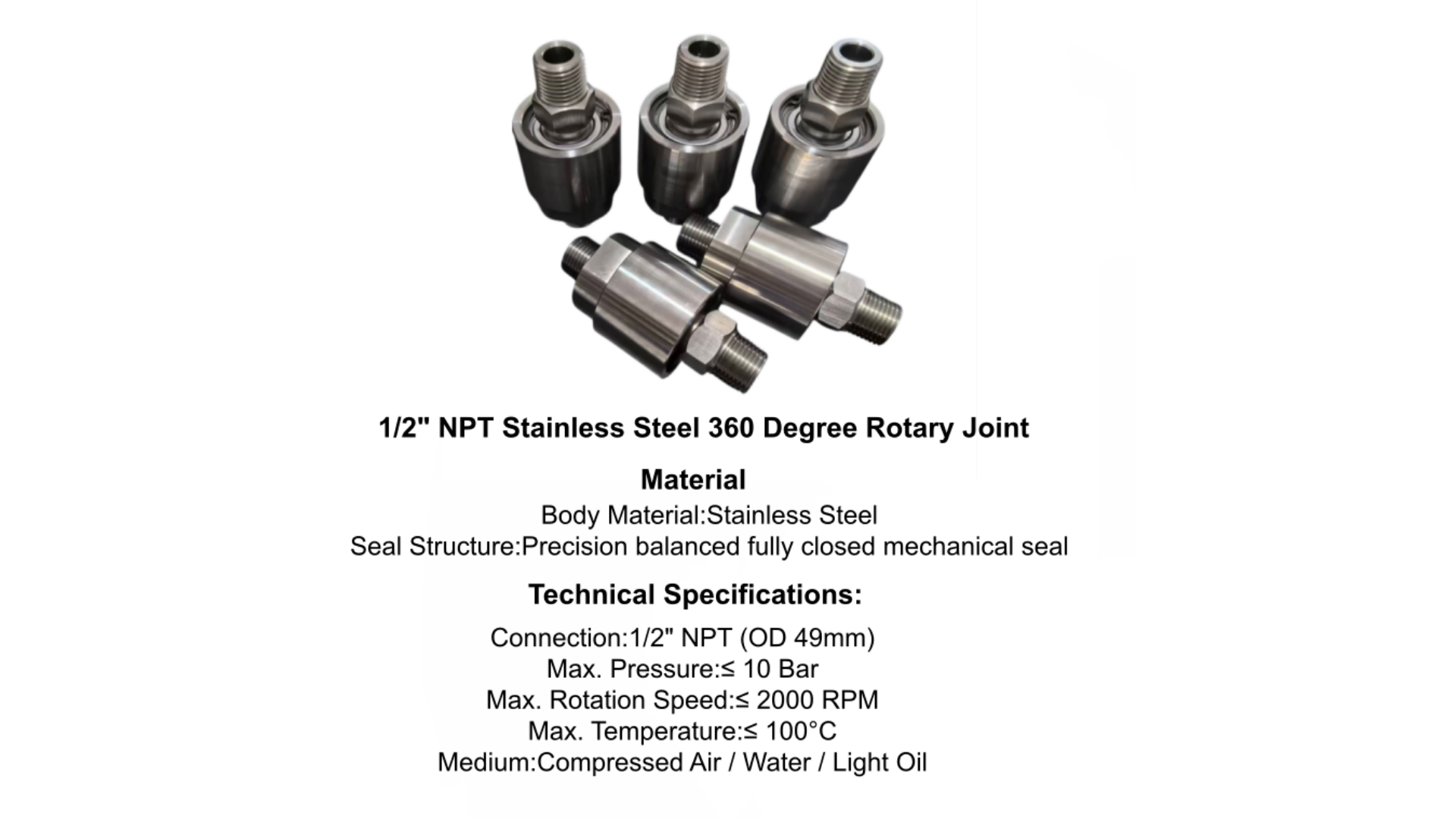

1/2 NPT stainless steel high speed rotary joint 360 degree swivel union 2000 RPM for pneumatic system hose reel winding equipment

Product Overview

Our 1/2″ NPT Stainless Steel 360° Pneumatic Rotary Joint​ is engineered for continuous rotation applications where reliable media transfer and zero leakage are critical. Built with an overall stainless steel body and a precision-balanced fully closed mechanical seal, this swivel joint delivers stable performance in compressed air systems, high-pressure car washers, automatic hose reels, and winding equipment.

With a compact outer diameter of 49mm, it is designed to fit seamlessly into space-constrained installations while withstanding demanding industrial environments. The fully enclosed seal structure prevents external contamination, while the balanced design minimizes friction and heat build-up during high-speed rotation.

Key Parameters at a Glance:

Connection:​ 1/2″ NPT (Outer Diameter: 49mm)

Max. Working Pressure:​ ≤ 10 Bar

Max. Rotation Speed:​ ≤ 2000 RPM

Max. Medium Temperature:​ ≤ 100°C

Compatible Medium:​ Compressed air (also suitable for clean water and light oil)

Body Material:​ Full stainless steel construction

Seal Structure:​ Precision balanced fully closed mechanical seal

 Application Scenarios

This rotary joint is widely used across multiple industries:

• High-Pressure Car Washers & Jet Cleaners​ — Connects the fixed air/water supply to the rotating spray platform, preventing hose tangling during operation.
• Automatic Hose Reels & Winding Machines​ — Enables smooth paying-out and retracting of hoses without twist damage.
• Pneumatic Control Systems​ — Transfers compressed air from stationary lines to rotating actuators, cylinders, and tools.
• Industrial Automation​ — Ideal for rotary indexing tables, turntables, and robotic arms requiring continuous media supply.
• Light Fluid Transfer​ — Suitable for clean water or light oil transfer at low to medium pressure (≤ 10 Bar).

✨ Key Selling Points (Buyer-Focused)

✔ Eliminates Hose Twisting & Kinking

By allowing 360° free rotation, the joint dramatically extends hose life and prevents sudden burst failures at the connection point — a common pain point in car wash and hose reel applications.

✔ Zero Leakage, Low Maintenance

The balanced mechanical seal maintains constant contact pressure on the seal faces, ensuring leak-free performance throughout the product’s lifetime. No periodic seal adjustment required.

✔ Corrosion-Proof for Harsh Environments

Full stainless steel construction resists rust, oxidation, and chemical attack — perfect for outdoor hose reels, humid car wash bays, and coastal installations.

✔ Quiet, Smooth, Efficient

Optimized internal flow channels and precision bearings deliver low-noise operation and efficient heat dissipation, keeping the workspace comfortable and the joint cool under continuous duty.

✔ Standard 1/2″ NPT Compatibility

Universal 1/2″ NPT thread fits most North American and industrial pneumatic systems — no custom adapters needed, easy drop-in replacement.

✔ Space-Saving Design

With a compact 49mm outer diameter, it fits into tight equipment layouts where larger rotary unions cannot be installed.
