Single Channel RF Rotary Joint DC-18GHz 50Ω SMA-F Interface 300RPM Stainless Steel for Radar Rotating Antenna
Product Overview
Our single-channel RF rotary joint (slip ring) is engineered to deliver uninterrupted, high-frequency signal transmission between stationary and rotating platforms. With a compact flange design and robust stainless steel housing, it ensures reliable performance in demanding dynamic environments.
Key Features & Advantages
- Wide Frequency & High Power: Covers DC-18GHz with 50Ω impedance. Handles high average power: 100W (DC-2GHz), 50W (2-8GHz), 25W (8-15GHz), and 20W (15-18GHz).
- Superior RF Performance: Ultra-low VSWR (Max 1.25) and low insertion loss (Max 0.3dB) guarantee signal integrity and minimal reflection.
- Durable & Compact: 25.40mm flange diameter, lightweight yet sturdy stainless steel construction. Rated IP41 for basic dust and moisture protection.
- High-Speed & Long Life: Supports rotational speeds up to 300RPM with a minimum operating life of 10 million revolutions.
- Harsh Environment Ready: Operates reliably in temperatures from -40℃ to +80℃. Complies with GJB150 standards for damp heat, vibration, and shock resistance.
- Easy Integration: Equipped with standard SMA-F interfaces for quick connection.
Technical Specifications

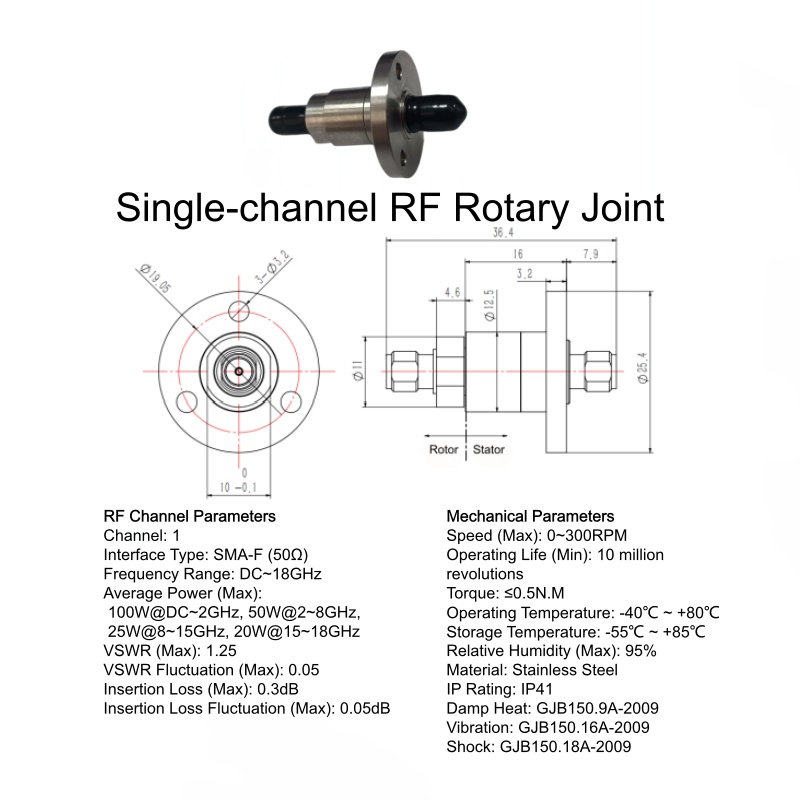

| Parameter | Specification |
|---|---|
| Channel | 1 |
| Interface | SMA-F (50Ω) |
| Frequency Range | DC~18GHz |
| Average Power | 100W@DC-2GHz, 50W@2-8GHz, 25W@8-15GHz, 20W@15-18GHz |
| VSWR (Max) | 1.25 |
| Insertion Loss (Max) | 0.3dB |
| Speed (Max) | 300RPM |
| Torque | ≤0.5N.M |
| Operating Life | 10 million revolutions (Min) |
| Material | Stainless Steel |
| IP Rating | IP41 |
| Operating Temp. | -40℃ ~ +80℃ |
Applications
Perfect for radar systems, rotating antennas, satellite communications, microwave test equipment, and automation control systems requiring 360-degree RF signal transfer.
Ordering & Support
We accept trial orders and support long-term monthly partnerships. Contact us via WhatsApp for the best factory-direct offer, detailed drawings, and lead time.
