Ingiant Through Bore Slip Ring For Automation Machines

Short Description:

Product Detail

Product Tags



The main parameters

Number of circuits 17 Working temperature “-40℃~+65℃"
Rated current Can be customized Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

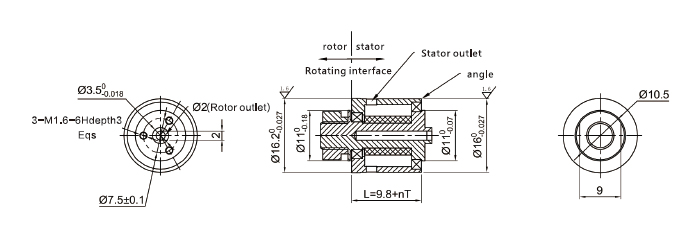

Standard Product Outline Drawing


Application Filed

Video systems, Capping machines, Control systems, Medical equipment and systems, Packaging machines, Robotics, CCTV cameras and systems. Mechanical handling,Lifting equipment and cable reelers, Hazardous area equipment, Satellite assemblies, Wind tunnels, Sub sea applications, Remote operated vehicales.


Our advantage

1. Product advantage: Adopts gold-to-gold contact to transmit signal;Able to integrate up to 135 channels;Module design, guarantees consistency of the products;Compact structure, small size;Adopt special soft wire; High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. Depending on strong R&D ability and close cooperation with well-know enterprises & research institutes, Ingiant could not only provide standard industrial slip rings, but also customize different slip rings according to customer’s different requirements.
3. Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

Factory Scene
