Ingiant Solid flange type slip ring 34 channel for industrial automatic equipment

Short Description:

DHS series of stator flange slip rings is the general name of some series of slip rings designed for the stator part with connecting flanges. Solid slip rings with no through hole in the center are suitable for stator flange installation. Because there is no through hole in the middle, more circuit design and more current can be realized under the premise of the same OD size.

Send email to us

Product Detail

Product Tags

Specification

Ingiant solid shaft slip ring for engineering machinery

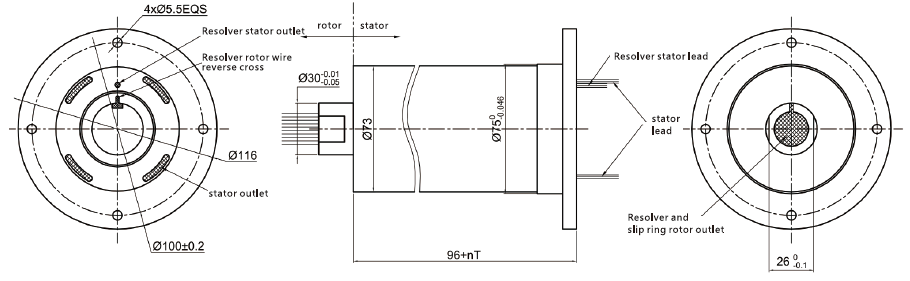

DHS043-34
The main parameters
Number of circuits	34	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products,can be customized according to your requirements

Product Features：

1: DHS series stator flange slip ring is the general name of some row of slip rings with connecting flange design of stator subpart.

2 : solid slip ring, no through hole in the center, suitable for stator flange installation.

3 : Because there is no through hole in the middle, more circuit design and greater current can be realized under the premise of the same outside diameter.

4: This series of products is more stable and reliable due to sufficient internal space, convenient design of internal wiring and special shielding module.

5: Usually this kind of product is used to customize various sensitive signals or encoder signals.

In addition to the standard solutions presented here, we also offer our customers our design and development service from the beginning of their project. We attach great importance to working closely together with our customers and our technically skilled sales force provide every support in this respect. We will be happy to discuss your new projects with you.

We offer a full line of standard products for a wide variety of applications, as well as complete specialised rotating solution & rotate joint design & build services.such as high working speed, high protection grade, high frequency, hybrid unit of optical and electrical, high speed data transmission, hydraulic or pneumatic system and so on, design is quickly, delivery time is prompt.

We work directly with our slip ring partners to design custom solutions to meet your exact electrical slip ring requirements.
