Ingiant slip ring hole diameter 62mm and 4 channels for casting film equipment

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

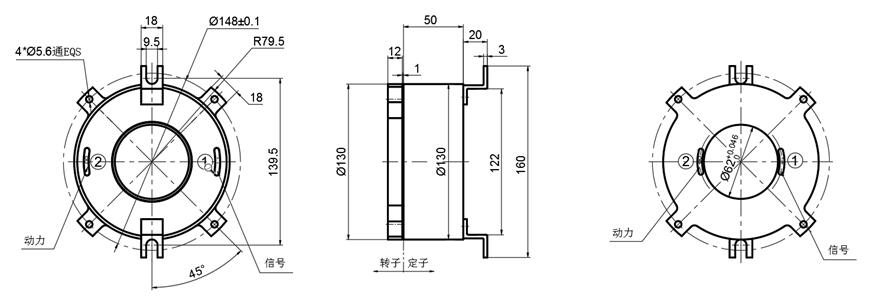

Standard product outline drawing:

The through-hole conductive slip ring is a collective term for a series of conductive slip rings with a central hole, mainly used for transmitting precision signals, weak currents, large currents, and high voltages;

• Mainly designed for gas-liquid pipelines passing through or rotating motor shafts
• Adopting advanced precious metal cluster brush type multi-point contact, ensuring reliable contact under extremely low friction.
• The diameter of the through-hole ranges from 12.7mm to 210mm
• Gold plated ring+alloy brush (gold plated)
• Support signal and power hybrid transmission
• Customizable circuit number and current voltage based on standard models
• Customizable for various types of hollow shaft conductive slip rings, through hole slip rings, through hole conductive slip rings, hollow shaft slip rings, etc

Typical applications of through-hole slip rings:

DHK series integrated precision conductive slip rings are mainly used in situations where 360 degree continuous rotation is required and power supply cannot be interrupted. They are mainly used in drying equipment (such as dryers, drying and sterilization equipment, grain dryers, etc.), casting film equipment, three-phase AC/DC instrument calibration devices, amusement facilities (such as children’s riding series amusement machines, carousels), grinding and polishing machines, cranes, security inspection special equipment Any device that requires 360 ° rotation to conduct electricity or transmit various control signals, such as movie equipment.

Our Advantage

1. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
2. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
