Ingiant HD-SDI conductive slip ring HD media equipment interface conductive slip ring

Short Description:

HD Conductive Slip Ring – DHS Series

HD conductive slip rings are based on HD multimedia interfaces and are used for the rotational transmission of uncompressed audio and video signals. High-definition video slip rings include HDMI slip rings, SDI slip rings, 1080P conductive slip rings, etc., which are widely used in new technology fields such as radio and television, photography, video, and VR.

Send email to us

Product Detail

Product Tags

DHS024-20-002
The main parameters
Number of circuits	20	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

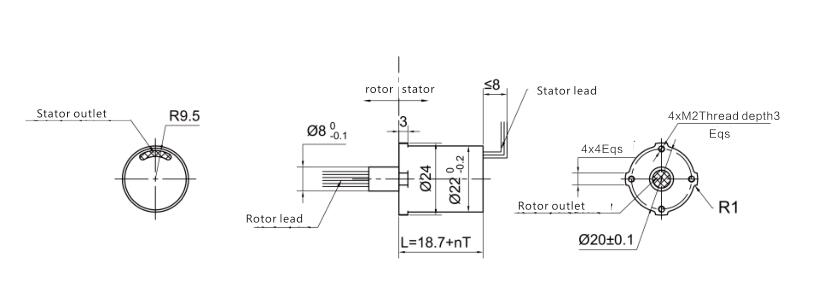

Product drawing:

HD Conductive Slip Ring – DHS Series

Customize various types of high-definition signals, standard DC-3GHz frequency, high-definition conductive slip ring supports HDMI/SDI/VGA signal transmission, up to 10.2Gbps bandwidth.

Features

Contact gold to gold contact
Support 1080P, 720P video signals
Light weight, compact structure, small installation space requirement
Stable performance, no packet loss and crosstalk, small insertion loss and large return loss

Our advantage:

Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Light in weight and compact in size, easy to install. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss.
Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
