Ingiant Liquid Rotary Joint For Rolling Machinery

Short Description:

Product Detail

Product Tags



Technical parameters

Passages According to requirement of customers
Thread RC2-1/2”
Flow hole size Φ60
Working medium water
Working pressure 1.1 Mpa
Working speed 800rpm
Working temperature "-30℃~+120℃"

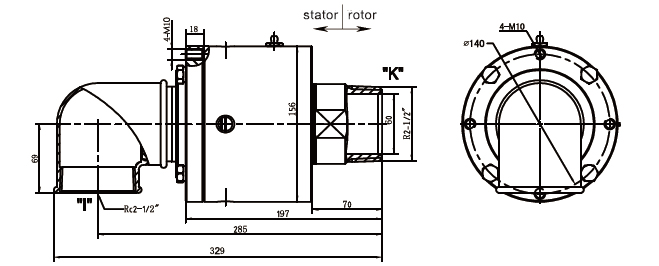

Standard Product Outline Drawing


Application Filed

Ingiant hydraulic slip rings are widely used in metallurgical machinery, rolling machinery, paper machinery, Capping machines, Mechanical handling, Lifting equipment, Cranes, fire trucks, Control systems, Robotics, Remote operated vehicales excavators and other special construction machinery.


Our advantage

1. Product advantage:
Single-way liquid swivels are offered by a large number of providers. However, this type of rotary joint is not easy to combine with electric, optic rotary joints, because they do not have a through-bore. The great advantage of all our commutators is to have a through-bore. This allow to pass wires, fibers and tubes in the central axis to combine several techniques. Our liquid rotary joints have got 1, 2 or 3 distinct chambers and a through-bore. Thus, they are recommended to run behavioral experiments in which electric wires and/or fibres need to be used, too. Our electric rotary joints are embedded with our motorized movement compensator, which compensates both the rotative movements of the animal and the weight of the cables, fibers, tubes.

2. Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

3. Excellent after-sales and technical support service: Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

Factory Scene
