Ingiant hybrid electrical slip rings combined 70 circuits electrical and 1 circuits pneumatic rotary unions
|
DHS284-70-1Q |
|||
|
The main parameters |
|||
|
Number of circuits |
70 |
Working temperature |
“-40℃~+65℃” |
|
Rated current |
can be customized |
Working humidity |
＜70% |
|
Rated voltage |
0~240 VAC/VDC |
Protection level |
IP54 |
|
Insulation resistance |
≥1000MΩ @500VDC |
Housing material |
Aluminum Alloy |
|
Insulation strength |
1500 VAC@50Hz,60s,2mA |
Electrical contact material |
Precious metal |
|
Dynamic resistance variation |
＜10MΩ |
Lead wire specification |
Colored Teflon insulated & tinned stranded flexible wire |
|
Rotating speed |
0~600rpm |
Lead wire length |
500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

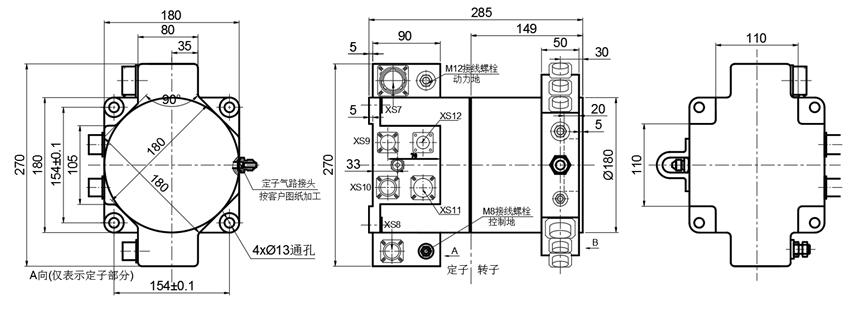

Product drawing:
What do pneumatic liquid slip rings do?
Pneumatic liquid slip rings belong to the “hybrid slip rings”. They are designed for the passage of more than one form of energy. The pneumatic liquid slip rings are among the most powerful representatives of their class. Their task is to guide any incoming energy form through a rotating union that can be rotated as desired – or vice versa. The return line from a rotating duct into a rigid duct is also possible without any problems. The pneumatic liquid slip rings perform enormously, especially when passing through hydraulic or pneumatic pressures: the components can be pressurised with up to 100 bar. This makes them ideal for particularly demanding applications.
