Ingiant hollow shaft slip ring 3 channels 40A and 2 channels 10A

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

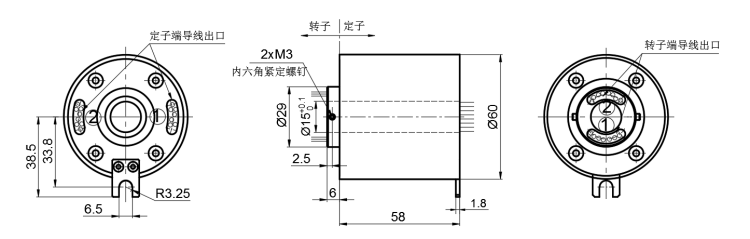

Product drawing:

Through hole slip ring is a kind of slip ring with a hole in center. Same meaning as through bore slip ring, sometimes called as hollow shaft slip ring. Through hole slip ring totally meet with continuous transmission of power, signals, weak current, high current, high voltage under 360 degree unrestrained rotations. Low torque, low electrical noise, low loss and easy maintenance as the main features.

The process manufacturing and principle are similar to other slip rings. Power, signals and other data are transmitted from the fixed position to the rotating position through the contact between brush and the contact. Gold brush and contact will increase the working life. The basic technical parameters of hole/bore slip ring mainly include bore outer diameter, bore inner diameter, length, circuits, voltage, current, maximum speed, etc. The length is variable and can be customized arbitrarily, while the outer diameter and inner diameter have some standard dimensions in through hole electrical slip rings industry. The number of circuits are the one core parameter for this series products, larger the number of circuits, more complex manufacturing process, higher the price cost.

Our advantage:

1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
