Ingiant high reliability solid shaft compact slip ring diameter 136mm, 183 Channels

Short Description:

Capsule Slip Rings are compact slip rings that can be used in a wide range of applications. They integrate rotor, stator, brush block, bearings and casings and enable the transmission of power and data through rotating systems. They are ready to be integrated into customers’ systems and provide built-in protection from humidity and dust.

Send email to us

Product Detail

Product Tags

DHS136-183
The main parameters
Number of circuits	183	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

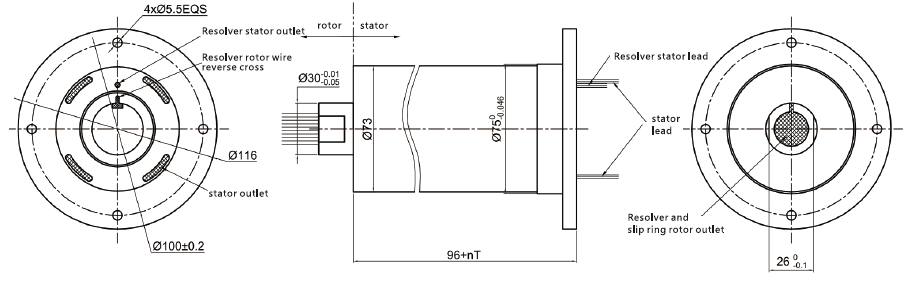

Product drawing:

What is a Capsule Slip Ring?

Capsule Slip Rings transmit electrical power and data between a stationary and a rotating part. The torque of the slip ring is minimal while the range of transferred data is vast: Ethernet, Gigabit Ethernet, Video (HD-SDI, 3G SDI), USB, high frequency and fast data rates.

Most Capsule Slip Rings use gold-to-gold technology, which provides long life, minimal electrical noise and quality contact over time. The choice of insulation material is key and guarantees minimal interference between circuits. Capsule Slip Rings can be combined with other types of rotary joints such as FORJ, Hydraulic and High Frequency.

Our advantage:

Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
Product advantage : To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
Excellent aftersales advantage: The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.Provide technical information and technical training support on a regular basis.
