Ingiant Gas-electric hybrid slip ring through hole 30mm combined 4 channels pneumatic slip ring

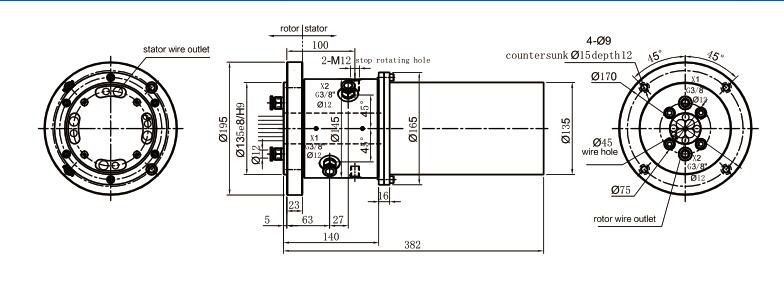

Standard product outline drawing:

Compact Hybrid Slip Rings – Pneumatic + Electric
This hybrid Slip Rings is a low-torque, extremely cost-effective rotary joint (also called a pneumatic slip ring or pneumatic electric). The speed can reach up to 600RPM. It can transmit compressed air independently, and can also transmit vacuum and negative pressure at the same time. Power signal is mainly used in situations where 360-degree continuous rotation requires ensuring air pressure, vacuum, power, and signals cannot be interrupted.

Features

• 4-way pneumatic/pneumatic electric combined rotary joint, pneumatic slip ring, rotary pneumatic joint, with G1/8″ thread
• It can optionally pass through power lines, signal lines, industrial buses, and control lines at the same time.
• Solenoid valve, induction line, etc.
• Pneumatic slip rings and rotary gas joints are flange-mounted as standard
• The media that can pass through are: compressed air, vacuum and other gases

Typical application:
Various automated non-standard equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, coating separator equipment, packaging film equipment for soft pack batteries, bonding equipment, laminating equipment, Electronic semiconductor industrial automation equipment; photoelectric flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, other automated non-standard professional equipment, etc.

Our Advantage

1. Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
