Ingiant Standard through hole slip ring series hole diameter 100mm 6 channels 20A

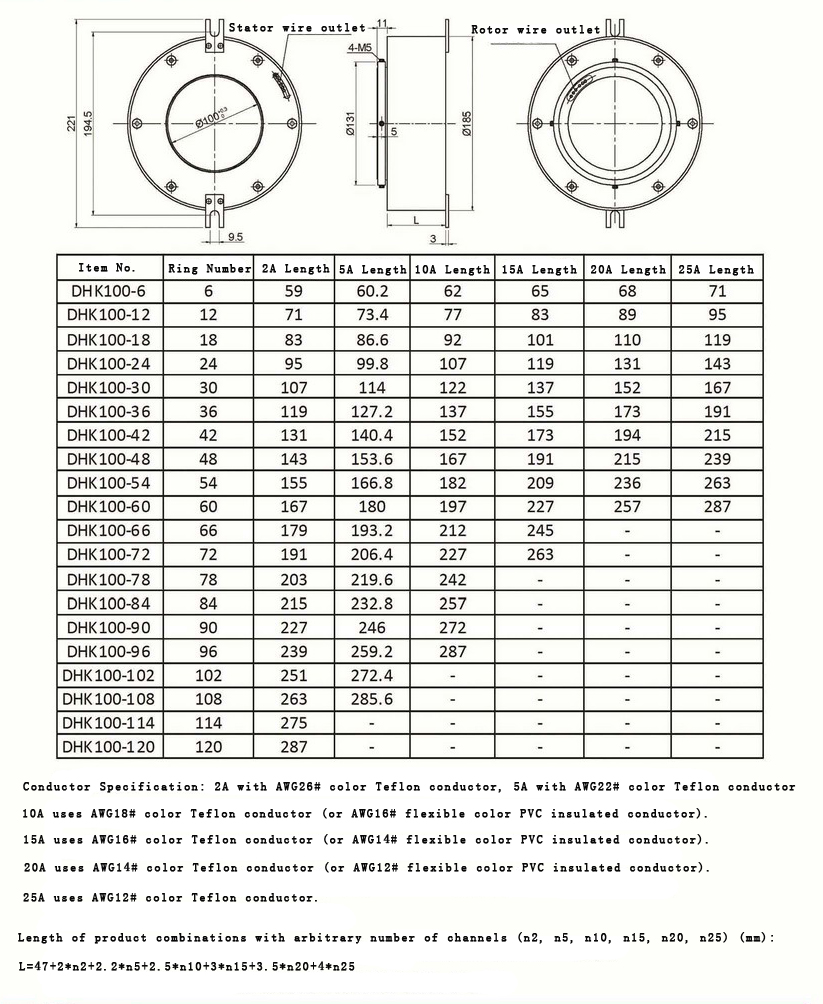

Standard product outline drawing:

Through bore slip ring price is affordable, hole diameter is 100mm, outer diameter is 185mm. For standard models, it can transmit 6/12/18/24 circuits etc of 2A/5A/10A /15A/20A/25Acurrent in 360° rotation.Through bore slip rings have compact structure and size, making installation and use of slip rings more easy and convenient.

Features

• Advanced multi-point contact brush technology ensures reliable contact with low friction;
• Support 1~120 circuits power/signal,customized for more circuits or large current;
• Can be customized to combine power/signal transmitting
• Support transmitting power with signals ;
• Integrated structure design, easy installation.

Applications: Automatic welding equipment, metal surface processing equipment, static torque sensors, pressure sensors, wire (network cable) cable production equipment, grinding and dispersing machines, electronic (textile) quality testing equipment, etc., industrial and civil devices that require conductive or transmit signals in rotation.

Our Advantage

1.  Product advantage: They are only a few millimetres high and thus very space-saving along the longitudinal axis. the pancake slip rings are shielded to at least protection class IP 40, or IP51 or higher if desired. Another significant advantage of pancake slip rings is their expandability Another significant advantage of pancake slip rings is their expandability.
2.  Company advantage: Ingiant Technology has accumulated rich experience in developing and producing highly reliable conductive slip rings for many years, especially in large size slip rings, effectively improving product quality and yield, and saving costs for customers.
3.  Excellent after-sales : The goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products. Provide technical information and technical training support on a regular basis.
