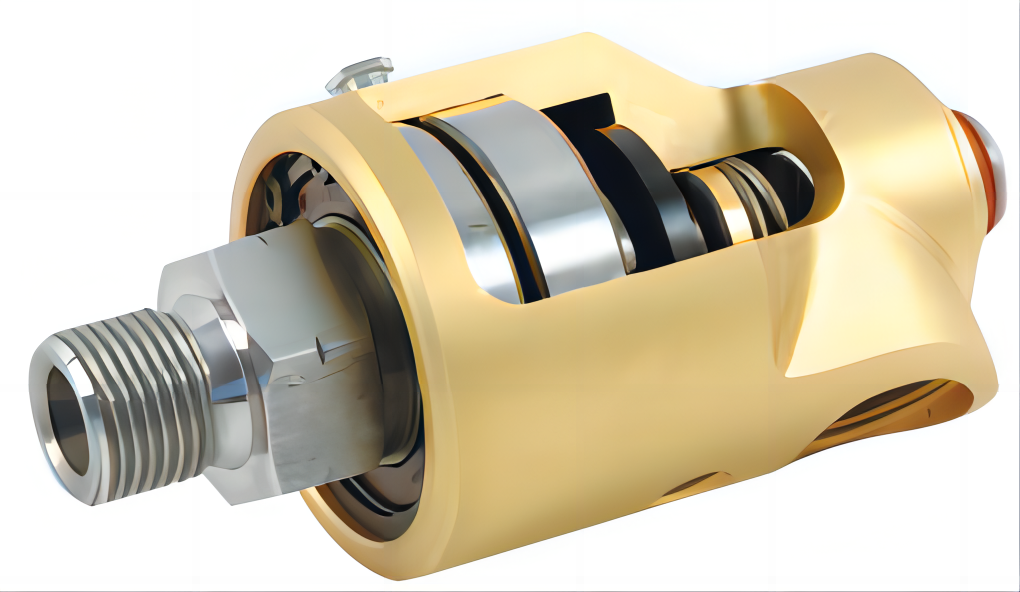

Deublin 55/57 Series Copper Cooling Water Rotary Joints, Original High-Speed Rotary Unions, Performance & Thread Specifications

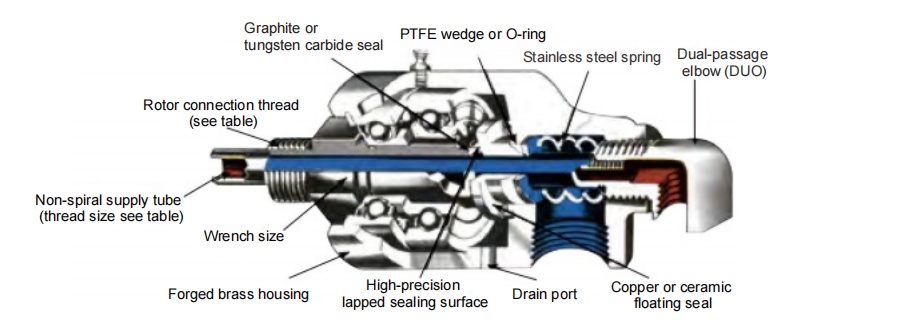

General Type 55 Series Rotary Joints D N 10-50

1. Single-passage and dual-passage design
2. Self-supporting rotator
3. Radial housing connection
4. Balanced mechanical seal
5. 3 leakage ports
6. Forged brass housing
7. Stainless steel rotor

Special Options:

• Threaded connection leakage port
• Splash-proof bearing
• Nickel-plated and/or low-torque design
