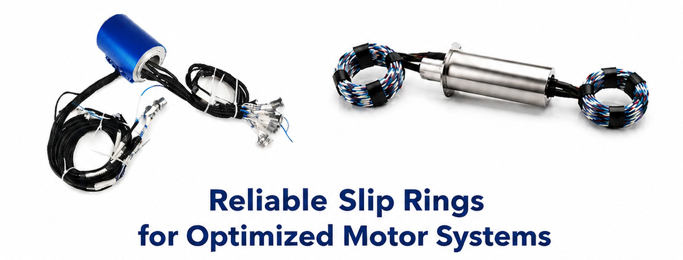

Reliable Slip Rings for Optimized Motor Systems

Ensure stable power and signal transfer for smoother, longer-lasting motor performance.

Opening Greeting

Dear Motion Control, Electrical & Mechanical Engineers,
This newsletter tracks cutting-edge AC, DC, servo and stepper motor drive innovations, focusing on energy reduction, predictive maintenance and factory-wide operational reliability. Today we break down what sets INGIANT apart from generic slip ring suppliers, and how our custom rotary conductive solutions solve your toughest rotating motor control pain points.

1. What Differentiates INGIANT From Competitors

Most slip ring manufacturers only deliver standard rotary connectors with one-size-fits-all structures, lacking motor-drive matched EMC shielding, military-grade durability and full vertical customization support.

INGIANT Core Competitive Edges

1. Motor-Drive Targeted EMI Suppression Tech
Proprietary electromagnetic interference processing eliminates encoder signal distortion, pulse loss and motor jitter for closed-loop servo & stepper drives—critical for high-precision motion equipment.

2. Full-Spectrum Customization Capability
In-house R&D, CNC machining and independent testing lab support mixed power/signal/fiber/hydraulic-pneumatic hybrid slip rings, tailored to AC variable frequency, DC speed regulation, servo pulse and stepper drive architectures.

3. Military & Industrial Dual-Quality Standard
All products pass GJB military standards + ISO quality system; 27 proprietary patents (1 invention patent + 26 utility models), fully validated via salt spray, high-low temp, insulation & dynamic resistance testing equipment.

4. Turnkey Technical Support for Automation Engineers
20+ professional design team, pre-sales simulation matching + after-sales on-site integration guidance, seamless compatibility with all mainstream motor drive brands.

5. Ultra-Wide Application Vertical Coverage
Proven deployments with top clients: SANY, CASC, NORINCO, Harbin Institute of Technology, Tsinghua University, China Huaneng, covering every industrial market you design for.

Company Background Snapshot
Jiujiang INGIANT Technology Co., Ltd. founded in 2014, located in Jiujiang National Economic & Technological Development Zone, with over 6,000㎡ production & R&D workshop. We integrate slip ring & rotary joint R&D, manufacturing, testing and global technical service, supplying 360° rotary power, signal, fiber, gas & liquid transmission solutions for all motion control automation scenarios.

2. INGIANT Motor-Matched Slip Rings: Feature + Application + Value + Key Parameters

Core Product Performance Features

• • Precious metal multi-point contact design, dynamic resistance variation <10mΩ, minimal power loss for motor drive circuits
• • Wide operating temperature: -40℃ ~ +65℃ (optional -40℃~+85℃)
• • Protection grade range: IP51 to IP68, anti-salt spray, shock & vibration resistant (compliant with GJB150 military shock standard)
• • Flexible current matching: 2A/5A/10A/15A/20A/30A per circuit, up to 2000A for heavy-duty AC motor equipment
• • Voltage compatibility: 0\440VAC / 0\240VDC, matches all AC VFD, DC regulator, servo & stepper drive output
• • Service life ≥100 million rotations, drastically reduce component replacement cycles
• • Hybrid customizable: Electric + fiber optic + pneumatic/hydraulic integrated rotary joints for multi-axis rotating automation
• • Low torque design (1 mN·m per ring), no extra load burden on motor rotating shafts

Target Applications

General manufacturing, industrial machinery & tools, automotive production lines, aerospace & defense radar/missile equipment, medical CT/rotary diagnostic devices, packaging rotary stackers, wind energy & public utilities, agricultural rotating harvesters, oil & gas turntables, paper/printing/textile rotary rollers, transportation turntables, food & beverage rotary filling machines.
Perfect for rotating motor terminals, robotic joint wiring, rotary worktables, cable reels, rotating sensor encoder signal transmission, rotary test stands.

Tangible Engineer & Factory Value

1. Energy Consumption Optimization
Ultra-low contact resistance cuts power transmission loss, lowering AC/DC motor overall energy draw and long-term electricity operating costs. Harmonic interference suppression stabilizes VFD AC motor operation, reducing invalid power waste.

2. Simplified Equipment Maintenance
Long service life wear-resistant precious metal contact structure minimizes regular overhaul, replacement downtime and labor costs; sealed IP-rated housing eliminates dust/moisture induced short-circuit faults on motor drive circuits.

3. Maximize Factory Line Reliability
Stable encoder/pulse signal transmission eliminates servo positioning drift, stepper step loss and DC motor speed fluctuation; zero signal distortion avoids unplanned production line shutdowns caused by motor stalling or jitter.

4. Lower Engineering Integration Costs
One-stop customizable hybrid slip rings (power + signal + fiber + gas/liquid) reduce separate component procurement and wiring workload, shorten equipment R&D cycle for automation design engineers.

Universal Key Technical Parameters

3. Matching Slip Ring Solutions for 4 Major Motor & Drive Types

3.1 AC Motor & Variable Frequency Drive (VFD) Systems

• • Feature Match: High-current power circuits, EMI shielding to suppress VFD harmonic noise, wide temperature aluminum alloy housing
• • Application: Wind power generators, textile rotary rollers, heavy industrial general manufacturing equipment, oil & gas rotary platforms
• • Value: Stabilize AC power transmission, reduce harmonic loss, extend large AC motor bearing & drive service life, cut factory energy bills
• • Recommended Series: DHK Through-hole series, DHS Flange solid shaft series

3.2 DC Motor & DC Speed Regulating Drives

• • Feature Match: Ultra-low dynamic resistance, low voltage drop design, compact miniature multi-circuit layout
• • Application: Portable agricultural machinery, compact medical automation equipment, small industrial transport turntables
• • Value: Eliminate DC speed fluctuation during continuous rotation, guarantee stable low-speed torque output, reduce DC drive overheating failures
• • Recommended Series: Mini DHS012 / DHS016 compact slip rings

3.3 Servo Motor & Closed-Loop High-Precision Drives

• • Feature Match: Shielded signal circuits, integrated fiber optic channels optional, minimal signal attenuation for encoder feedback
• • Application: Automotive assembly robots, aerospace precision turntables, high-speed packaging positioning equipment
• • Value: Maintain micron-level positioning accuracy, eliminate servo position deviation & jitter, support high-speed reciprocating rotation without signal loss
• • Recommended Series: DHS hybrid electric-fiber slip rings (DHS100-18-4F, DHS110-42-1F)

3.4 Stepper Motor & Pulse Drive Systems

• • Feature Match: Stable pulse signal transmission, anti-interference signal loops, adapt frequent forward/reverse start-stop rotation
• • Application: Printing rotary equipment, textile winding machinery, general automated positioning workstations
• • Value: Prevent stepper step loss & positioning drift, improve production repeatability and processing consistency
• • Recommended Series: Standard DHK025 / DHK038 through-hole slip rings

4. Hybrid Multi-Function Slip Ring Upgrade Option

For engineers designing multi-axis rotating machines requiring simultaneous power, encoder signal, high-speed data, compressed air or hydraulic fluid transfer, INGIANT all-in-one hybrid rotary joints deliver integrated solutions:

• • Electric + Pneumatic/Hydraulic combined slip rings (DHK025-5A-1Q-1Y series)
• • Electric + Single/Multi-Mode fiber optic rotary joints (HS fiber series, insertion loss <1.5dB, transmission distance >10km)
• • Gigabit Ethernet + power composite slip rings for industrial IoT motor monitoring

Core Hybrid Product Benefits

Reduce separate rotary connector installation space, simplify wiring layout, cut equipment overall volume and lower assembly failure risk for complex motion control systems.

Closing Takeaway

Modern AC, DC, servo and stepper motor drive technology can only deliver full efficiency and precision with reliable 360° rotary power & signal transmission. Unlike generic slip ring suppliers, INGIANT leverages military-grade testing, proprietary anti-interference technology and full custom engineering to build slip rings purpose-built for motion control automation.
Our solutions directly solve your core challenges: excessive energy waste, frequent drive signal faults, unplanned maintenance and low production line reliability across all industrial vertical markets.

If you require custom slip ring matching for your motor drive projects, our professional technical team offers free parameter simulation and sample testing support.
