In modern industrial production, numerous operations are carried out in flammable, explosive, high-dust and high-risk environments such as offshore oil platforms, chemical plants, coal mines, pharmaceutical factories and spraying workshops. Ordinary conductive slip rings are prone to generate electric sparks, electric arcs and high temperature during rotating operation, which easily trigger explosion accidents and bring huge safety hazards to personnel and equipment. As a specialized safety-level electromechanical rotating transmission component, explosion-proof slip ring perfectly solves the power and signal transmission pain points of rotating equipment in hazardous working conditions, becoming a core guarantee for the safe and stable operation of industrial special equipment.

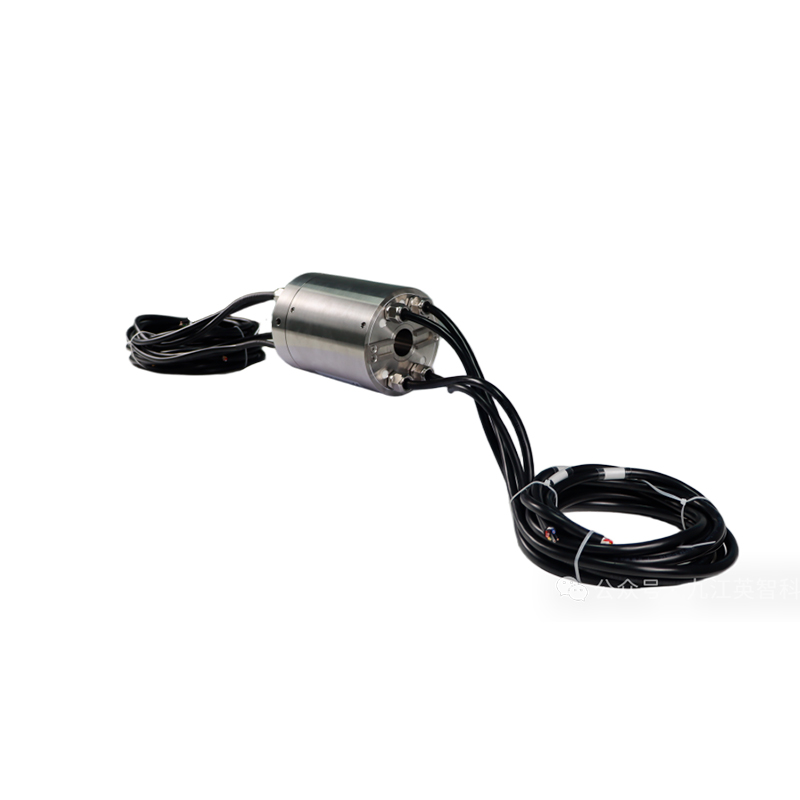

What is an Explosion-Proof Slip Ring?
Also known as flameproof slip ring, explosion-proof collector ring or explosion-proof rotary joint, the explosion-proof slip ring is a high-reliability customized rotating conductive device upgraded and optimized on the basis of ordinary slip rings for explosive dangerous environments. Different from ordinary slip rings that only focus on basic electrical transmission performance, it takes safety explosion prevention as the core design standard. It can realize 360° unlimited continuous rotation of equipment, stably transmit power, control signals, sensor data, Ethernet and even fluid media, and completely isolate the risk of external flammable and explosive substances being ignited by internal sparks, static electricity and high temperature.
This product is not a simple protective upgrade of ordinary slip rings, but a systematic optimization of material selection, mechanical structure, sealing performance and temperature control, which fully meets the international safety standards for hazardous area equipment.
Working Principle & Core Explosion-Proof Mechanism
The basic working principle of the explosion-proof slip ring is consistent with that of traditional slip rings, relying on precise contact between high-performance conductive materials to realize power and signal transmission between fixed and rotating parts. Its core competitiveness lies in the unique explosion-proof protection mechanism, which eliminates explosion risks from multiple dimensions:
1. Flameproof Isolation Structure (EX d Certification Standard)
The explosion-proof slip ring adopts a professional flameproof closed structure. The high-strength aluminum alloy/stainless steel shell can withstand the instantaneous impact pressure up to 1.5MPa generated by accidental internal short circuit or spark discharge. It can effectively prevent internal flames and high-temperature gas from penetrating to the external dangerous environment, and avoid igniting flammable gas, vapor and explosive dust in the working space, covering IIC, IIA, IIB gas environment standards and adapting to T3-T6 temperature groups.
2. Low-Spark Conductive Material Design
Aviation-grade low-spark special conductive alloy is used for the internal contact assembly, which greatly reduces the electric spark and friction heat generated by rotating contact. Compared with ordinary alloy materials, it has more stable conductivity and lower friction calorific value, fundamentally reducing the probability of spark generation during operation.
3. Full Sealing & Constant Temperature Control
Equipped with multi-channel professional rubber sealing structure, the protection grade reaches IP66, which can completely isolate external dust, moisture and flammable media from entering the interior. Adaptable to -40℃ to 85℃ wide temperature working environment, the optimized temperature group design ensures the maximum surface temperature ≤85℃ (T6 grade), avoids local high temperature accumulation of the equipment, ensures that the surface temperature is always lower than the ignition point of dangerous substances, and realizes all-round safety protection.
4. Anti-Static & Anti-Interference Design
The whole machine is equipped with a professional anti-static structure to eliminate static electricity accumulation during high-speed rotation. The internal circuit is optimized with anti-interference processing, which ensures stable signal transmission while avoiding electrostatic discharge sparks, adapting to long-term continuous operation in complex hazardous environments.
Key Technical Parameters & Core Advantages
Our explosion-proof slip rings adopt standardized and customizable industrial parameter configurations, fully matching global hazardous area equipment specifications. Below are the mainstream technical parameters for mass production and customization, covering most industrial application needs:
| Technical Item | Standard Parameter Range |
| Explosion-Proof Grade | Ex d IIC T6 Ga/Gb, Ex tD IIIC Db (compliant with IECEx, ATEX) |
| Protection Level | IP66 (dust-tight & water-resistant) |
| Working Voltage | 0-380V AC / 0-600V DC |
| Working Current | 2A / 5A / 10A / 30A / 50A per channel (customizable) |
| Signal Type Support | 4-20mA analog signal, RS485, CAN bus, Ethernet, high-definition signal |
| Working Speed | 0-300 RPM (continuous stable operation) |
| Working Temperature | -40℃ ~ +85℃ (low/high temperature customized version optional) |
| Insulation Resistance | ≥1000MΩ (500V DC) |
| Contact Resistance Variation | ≤5mΩ (stable contact, no signal jitter) |
| Service Life | ≥100 million rotations |
1. Strict Safety Certification & Wide Compatibility
1. Strict Safety Certification & Wide Compatibility
Fully certified by authoritative explosion-proof institutions, compliant with IECEx, ATEX and domestic explosion-proof standards. It is applicable to Zone 1/Zone 2 explosive gas environments and Zone 21/Zone 22 explosive dust environments, covering almost all industrial hazardous working conditions.
2. Stable Multi-Media Transmission Performance
It supports the integrated transmission of multi-channel power, weak current signals, Ethernet, high-precision sensor signals and hydraulic/pneumatic fluids. It has no signal distortion, no power attenuation, and realizes synchronous and stable transmission of multiple media without mutual interference.
3. Durable & Maintenance-Free Operation
The overall structure is compact and robust, with wear-resistant and corrosion-resistant shell materials. It adapts to harsh environments such as high temperature, high humidity, dust and corrosion. It has low operating friction, long service life and basically no daily maintenance, reducing equipment operation and maintenance costs.
4. High Customization Flexibility
Modular design supports customized development of channel number, voltage and current parameters, installation methods and interface types. It can be perfectly matched with various rotating equipment in different industries to meet personalized industrial transmission needs.
Main Application Scenarios
Explosion-proof slip rings are widely used in global high-risk industrial fields, providing safe rotation transmission support for key equipment:
- • Petroleum & Offshore Engineering: Offshore drilling platforms, oilfield logging equipment, rotary drilling rigs, realizing safe power and signal transmission during rotary operation of oil and gas exploitation equipment.
- • Chemical & Pharmaceutical Industry: Chemical reaction kettles, pharmaceutical centrifuges, coating and spraying equipment, adapting to flammable gas and dust environments in chemical and pharmaceutical production.
- • Mining & Metallurgy: Coal mine rotary detection equipment, underground mining machinery, metallurgical dust processing equipment, solving safety transmission problems in underground explosive environments.
- • New Energy & Environmental Protection: Biomass energy processing equipment, dust removal rotary equipment, new energy material processing production lines, adapting to dust and flammable hazardous working conditions.
- • Special Industrial Equipment: Explosion-proof cranes, rotary stage special equipment, military special rotary facilities and other scenarios with strict safety explosion-proof requirements.
Conclusion
With the continuous improvement of global industrial safety production standards, explosion-proof slip rings, as indispensable core safety components of hazardous area rotating equipment, play an irreplaceable role in avoiding industrial safety accidents and ensuring continuous and stable production. Relying on professional flameproof structure, low-risk material design and strict safety certification, modern explosion-proof slip rings balance safety, stability and durability, providing reliable rotating transmission solutions for high-risk industries around the world, and helping global industrial production achieve safer, more efficient and standardized operation.
