Ingiant through hole slip ring inner diameter 31mm 4 channels 2A

Short Description:

DHK series through hole slip ring is specially designed with a central hole for easy installation of hydraulic channel, air pressure channel or drive shaft. It adopts advanced beam brush type multi-point contact to ensure reliable contact under extremely low friction. The through hole ranges from 3mm to 500mm. Optional, the current can be selected from 2 Amperes to 1000 Amperes, which can fully meet your different transmission schemes.

Send email to us

Product Detail

Product Tags

DHK031-4-2A
The main parameters
Number of circuits	4	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

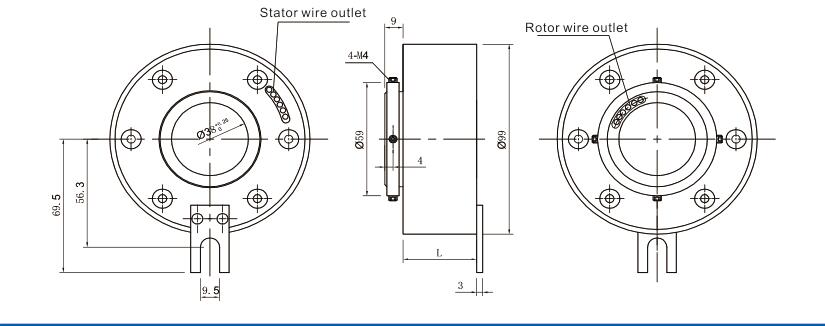

Standard product outline drawing:

Features：

Transmit analog and data signals
Compatible with data bus protocol
Long life, maintenance –free
Easy to install
360°ntinuous rotation to transmit power and data signals

Our Advantage

Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
