Ingiant standard through hole conductive slip ring hole diameter 80mm 80channels

Short Description:

Through hole conductive slip ring DHK080-80

DHK080-80 series through hole conductive slip rings, with an inner hole of 80mm and an outer diameter of 180mm, are suitable for rotating electromechanical systems with a diameter less than 80mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings,and are used to transmit power or signals in 360-degree rotating systems.



Features

  • Multi-contact brush contact design, long service life
  • Integrated structural design, easy to install
  • IP 54 protection level, IP68 can be customized
  • Can integrate multiple signals and be compatible with multiple data protocols
  • Maintenance-free use


Product Detail

Product Tags

DHK080-80

The main parameters

Number of circuits 80 Working temperature “-40℃~+65℃”
Rated current 2A.5A.10A.15A.20A Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

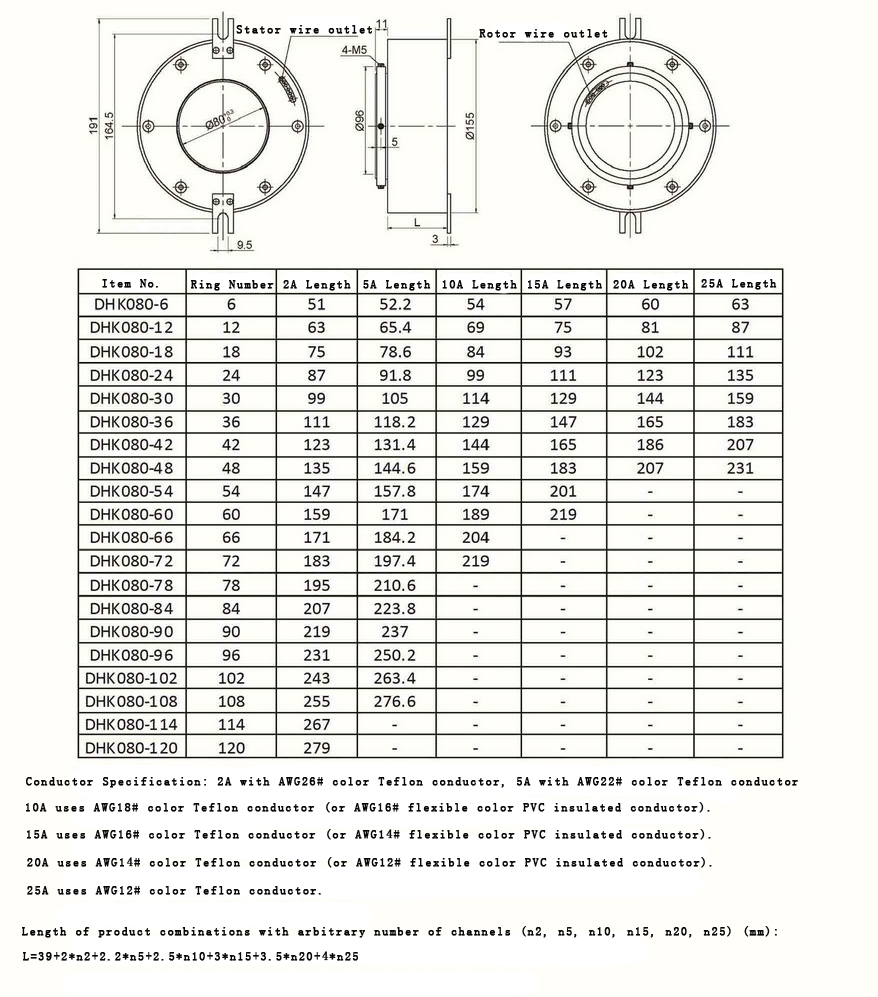

Standard product outline drawing:

DHK080

Through hole conductive slip ring DHK080-80

DHK080-80 series through hole conductive slip rings, with an inner hole of 80mm and an outer diameter of 180mm, are suitable for rotating electromechanical systems with a diameter less than 80mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings,and are used to transmit power or signals in 360-degree rotating systems.



Features

  • Multi-contact brush contact design, long service life
  • Integrated structural design, easy to install
  • IP 54 protection level, IP68 can be customized
  • Can integrate multiple signals and be compatible with multiple data protocols
  • Maintenance-free use

Typical applications

  • automatic machinery
  • cable tray
  • Robot/Rotation Sensor
  • Display/display equipment
  • Packaging Machinery
  • Industrial turntable
  • Medical/pharmaceutical equipment
  • Marking machine
  • Filling machinery
  • CNC machine tools
