Ingiant capsule slip ring with 50 circuits and 2 single-mode fibre

Short Description:

Fibre optic slip ring for maximum data rates. Light waves are the fastest and lowest-loss form of data transmission available. The international designation for the fibre optic slip ring is “FORJ”. This means “Fiber Optic Rotary Joints”. In addition, fibre optic cables have numerous other advantages.

Send email to us

Product Detail

Product Tags

DHS080-50-2F-002
The main parameters
Number of circuits	50	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

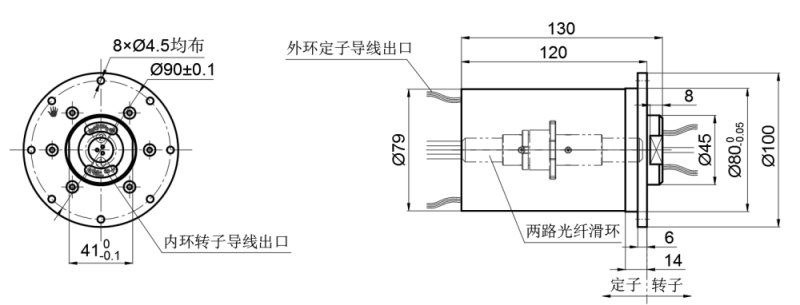

Product drawing:

These include the following properties:

Reliable signal transmission without interference
Insensitive to electromagnetic interference
No earthing or galvanic isolation necessary
Totally harmless
Extremely high security against eavesdropping
Very high ranges without intermediate amplification
Very high transmission rates

Our advantage:

Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
