Ingiant capsulated miniature slip rings diameter 40mm 72channels

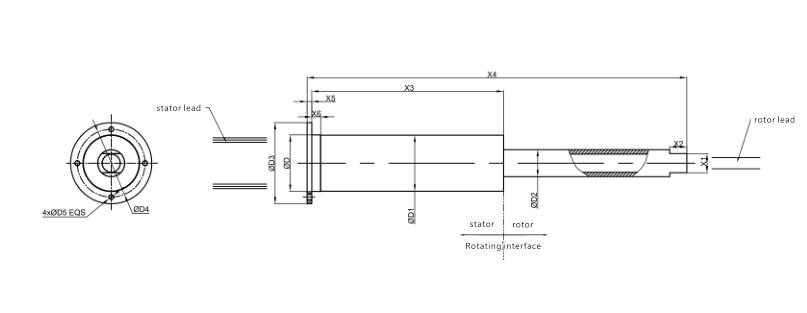

Product drawing:

High-quality capsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.

Mechanical Specifications

• Casing diameter 5.0mm to 54.0mm
• Possible flange solutions: Rotor flange, stator flange, without flange
• Rotation speed: 0-300 rpm (up to 3,000 rpm on request)
• Contact material: silver-silver, gold-gold, special solutions on request
• Cable length: freely definable, standard: 250mm (rotor/stator)
• Various cable cross-sections possible, connectors possible
• Housing material: plastic, aluminium or stainless steel
• Protection degree: IP54 (higher on request, up to IP69K)
• Working temperature: -20°C … +60°C (others on request)

The capsulated miniature slip rings are maintenance-free. They cannot be disassembled. The components are pressed and capsulated at the factory in such a way that they provide consistent reliability and transmission quality over their entire service life. Afterwards, the inexpensive components can be easily exchanged and replaced with a new part. Apart from external cleaning and regular checks of the non-locking rotatability, the capsulated miniature slip rings require no maintenance work.

Our advantage:

1. Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
2. Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
3. INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
