High Performance RF Rotary Joint HS-1RJ-003 for RF Signal Transmission

HS-1RJ-003 RF Rotary Joint
This 1-channel RF rotary joint is designed for reliable RF signal transmission in rotating systems. It features a wide frequency range of DC~18GHz, low insertion loss and stable VSWR performance, making it suitable for high-demand RF applications.

RF Channel Parameters
Channels: 1
Interface Type: 2.92 (50Ω)
Frequency Range: DC ~ 18GHz
Max Average Power: 20W
Max VSWR: 1.5
VSWR Fluctuation: 0.2
Insertion Loss: 0.8 dB
Max Insertion Loss Fluctuation: 0.15 dB

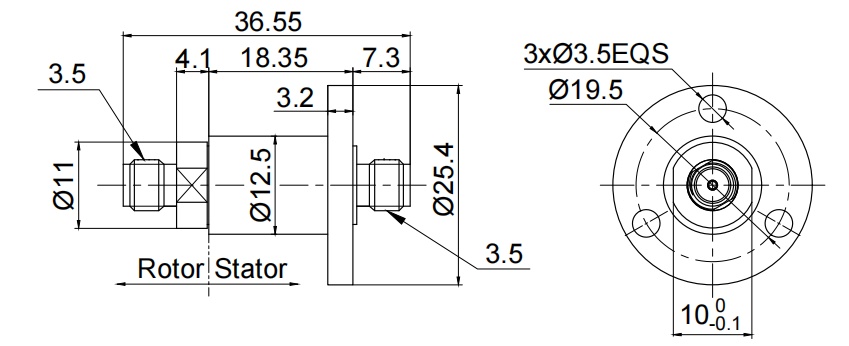

Mechanical Parameters
Max Rotation Speed: 60RPM
Min Operating Life: 5 million revolutions
Max Torque: ≤0.5N·M
Operating Temperature: -40°C ~ +70°C
Storage Temperature: -55°C ~ +85°C
Max Relative Humidity: 95%
Material: Stainless steel
IP Rating: IP61
Environmental Compliance: Damp Heat (GJB150.9A-2009), Vibration (GJB150.16A-2009), Impact (GJB150.18A-2009)
