Heavy Duty 54 Channel Slip Ring with Power, Network and Video Integration

Overview

This integrated slip ring works as a precision electrical rotary joint for heavy rotating systems. Instead of running separate rotary connectors for power, signal, bus communication and video, the unit combines 54 channels in one body. Power rings, signal rings, network rings and video rings are independently isolated to reduce crosstalk and keep data transmission stable under continuous rotation.

Key Features

• 54 channels in one unit​ – power + signal + industrial network + video integrated
• High current power transmission​ – up to 40A per power circuit, 0–380V AC/DC
• Strong anti-interference​ – independent layout for signal/network/video, isolation ≥40 dB
• Stable electrical contact​ – precious metal contacts, dynamic contact resistance variation ≤10 mΩ
• High dielectric insulation​ – 1000V AC test passed, no tracking or arcing
• Low torque rotation​ – max. static friction torque ≤10 N·m
• Rugged industrial build​ – aluminum alloy housing, weight ≤25 kg, IP51 protection
• Wide working temperature​ – -40°C to +55°C
• Easy installation​ – precision mounting datum, socket-style outlet, conductive sealing gasket

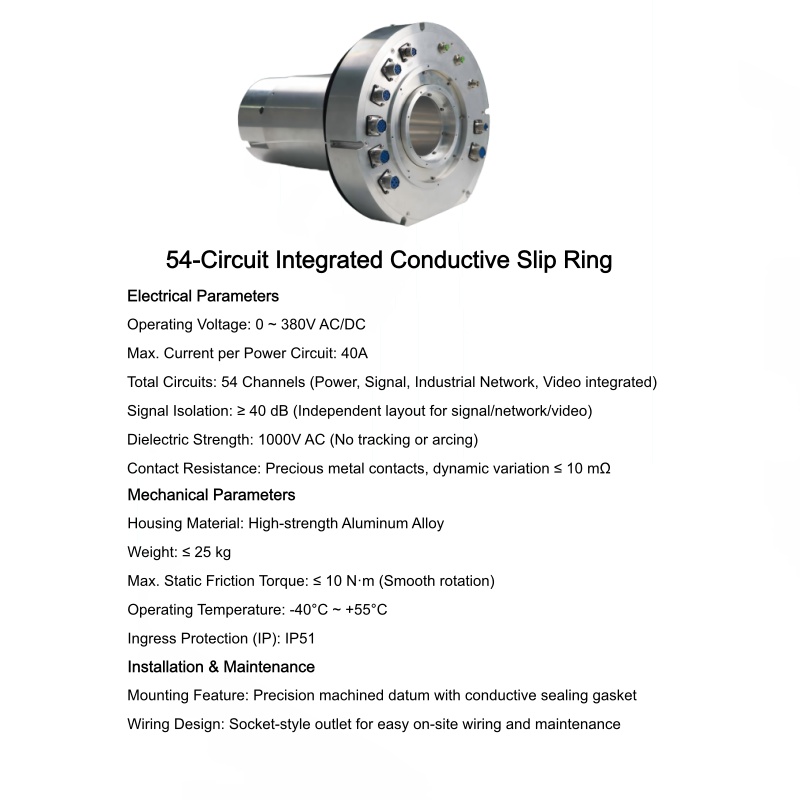

Technical Specifications

Typical Applications

• Large rotary platforms and slewing drives
• Construction machinery and heavy equipment
• Marine and deck machinery
• Automated production lines
• Radar turntables, crane swivels and rotating test rigs

Customization Service

Circuit quantity, current rating, signal type, connector style, flange size and outlet direction can be customized according to the equipment layout. OEM/ODM support is available for integrators and machinery manufacturers.
