DHK050 Through Bore Slip Ring
DHK050 Through Bore Slip Ring Description
Ingiant DHK050 Series outer diameter 120mm and inner hole diameter 50mm,it consists of 1-72 channels integral precision conductive slip ring ,supports signal and power mixed transmission, can customize the number of circuits and current voltage based on standard models
Typical Applications
- cable reel,
- window cleaning equipment,
- revolving dining table,
- revolving stage,
- revolving screen.

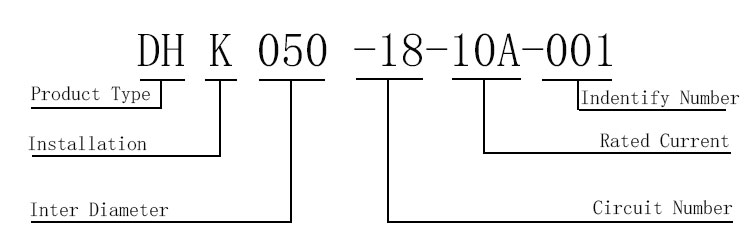

Product Naming Description
- (1)Product type: DH—electric slip ring
- (2)Installation method: K—through hole
- (3)Through hole product bore diameter:50-50 mm
- (4)Total circuits: 18-18 circuits
- (5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
- (6) Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHK050-18 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHK050-18-001; if there are more of this model in the future, and so on -003 , -004, etc.

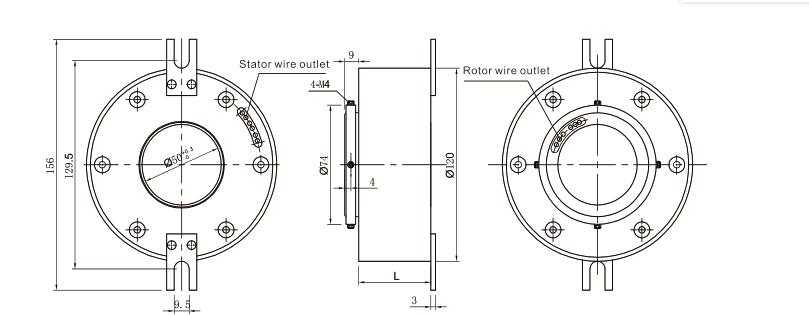

DHK050 Through Bore Slip Ring 2D Standard Drawing
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHK050 Through Bore Slip Ring Technical Parameters
|
Product Grade Table |
|||
| Product grade | Working speed | Working life | |
| General | 0～200 rpm | 20 million revolutions | |
| Industrial | 300～1000rpm | 60 million revolutions | |
| Technical Parameters | |||
| Electrical technical | Mechanical technical | ||
| Parameters | Value | Parameters | Value |
| Number of rings | Custom | Working temperature | -40℃～+65℃ |
| Rated current | 2A,5A,10A,15A,20A | Working humidity | ＜70% |
| Rated voltage | 0～240VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000ΜΩ@500VDC | Shell material | Aluminum Alloy |
| Insulation strength | 1500VAC@50Hz,60s,2mA | Electrical contact material | Precious metals |
| Dynamic resistance change value | ＜10mΩ | Lead specification | Colored Teflon |
| Working speed | 0-600rpm | Lead length | 500mm+20mm |
DHK050 Through Bore Slip Ring Wire Specification Table
| Wire Specification Table | ||||
| Rated current | Wire size (AWG) |
Conductor size (mm²) |
Wire color | Wire diameter |
| ≤2A | AWG26# | 0.15 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent |
Φ1 |
| 3A | AWG24# | 0.2 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 5A | AWG22# | 0.35 | Red, yellow, black, blue, green, white, brown, gray, orange, purple, light, red, transparent, blue white, white red | Φ1.3 |
| 6A | AWG20# | 0.5 | Red, yellow | Φ1.4 |
| 8A | AWG18# | 0.75 | Red, yellow, black, brown, green, white, blue, gray, orange, purple | Φ1.6 |
| 10A | AWG16# | 1.5 | Red, yellow, black, brown, green, white | Φ2.0 |
| 15A | AWG14# | 2.00 | Red, yellow, black, brown, green, white | Φ2.3 |
| 20A | AWG14# | 2.5 | Red, yellow, black, brown, green, white | Φ2.3 |
| 25A | AWG12# | 3.00 | Red, yellow, black, blue | Φ3.2 |
| 30A | AWG10# | 6.00 | Red | Φ4.2 |
| ＞30A | Use multiple AWG12# or multiple AWG10# wires in parallel | |||
Lead wire length description:
1.500+20mm (General requirement: Measure the wire length from the end face of the wire outlet hole of the inner and outer rings of the slip ring).
2.Length as required by the customer: L<1000mm, Standard L+20mm
L>1000mm, Standard L+50mm
L>5000mm, Standard L+100mm
DHK050 Series Recommend Products by Ingiant
| Item No. | Ring Number | 2A Length | 5A Length | 10A Length | 15A Length | 20A Length | 25A Length |
| DHK050-6 | 6 | 42.4 | 43.6 | 45.4 | 48.4 | 51.4 | 54.4 |
| DHK050-12 | 12 | 54.4 | 56.8 | 60.4 | 66.4 | 72.4 | 78.4 |
| DHK050-18 | 18 | 66.4 | 70 | 75.4 | 84.4 | 93.4 | 102.4 |
| DHK050-24 | 24 | 78.4 | 83.2 | 90.4 | 102.4 | 114.4 | 126.4 |
| DHK050-30 | 30 | 90.4 | 96.4 | 105.4 | 120.4 | 135.4 | - |
| DHK050-36 | 36 | 102.4 | 109.6 | 120.4 | 138.4 | 156.4 | - |
| DHK050-42 | 42 | 114.4 | 122.8 | - | - | - | - |
| DHK050-48 | 48 | 126.4 | 136 | - | - | - | - |
| DHK050-54 | 54 | 138.4 | 149.2 | - | - | - | - |
| DHK050-60 | 60 | 150.4 | 162.4 | - | - | - | - |
| DHK050-66 | 66 | 162.4 | 175.6 | - | - | - | - |
| DHK050-72 | 72 | 174.4 | 188.8 | - | - | - | - |
Conductor Specification:2A with AWG26# color Teflon conductor ,5A with AWG22# color Teflon conductor
10A uses AWG18#color Teflon conductor (or AWG16# flexible color PVC insulated conductor)
15A uses AWG16# color Teflon conductor (or AWG14# flexible color PVC insulated conductor)
20A uses AWG14# color Teflon conductor.
Length of product combinations with arbitrary number of channels(n2,n5,n10,n15,n20)(mm):
L=15.4+2*n2+2.2*n5+2.5*n10+3*n15+3.5*n20
