OD56mm 4sets 100Mbps Ethernet slip rings 2A

DHS056 Flange Slip Ring Description

Accepting customization, transmitting 100/1000M Ethernet signals

The DHS056 series solid shaft Ethernet slip ring has an outer diameter of 56mm and integrates 2A current, 2A signal, and 1000M Ethernet signal transmission. It is plug-and-play with an RJ45 connector and is also known as a network slip ring or cable slip ring.

Product Features：
◆ Stable transmission of four 100M Ethernet signals
◆ Brush contacts plated with precious metals for long service life
◆ Plug-and-play RJ45 connector
◆ Dedicated Ethernet cable
◆ Easy installation
◆ Stable transmission with no packet loss or scrambling, high return loss, and low insertion loss
Typical Applications

•  Small network systems
•  Video surveillance systems
•  Stage control systems
•  Industrial automation control
•  Various network cables and RJ45 interface transmission

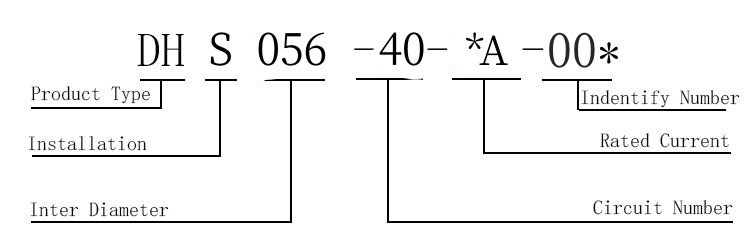

Product Naming Description

(1)Product type: DH—electric slip ring
(2)Installation method: S—solid shaft slip ring
(3)Outer diameter of solid shaft slip ring: 056-56 mm
(4)Total circuits: 40-40 circuits
(5)The rated current or it will not be marked if it passes through a different rated current for the circuits.
(6)Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS056-40-3A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS050-101-3A-002; if there are more of this model in the future, and so on -003 , -004, etc.
DHS050 Flange Slip Ring Technical Parameters
